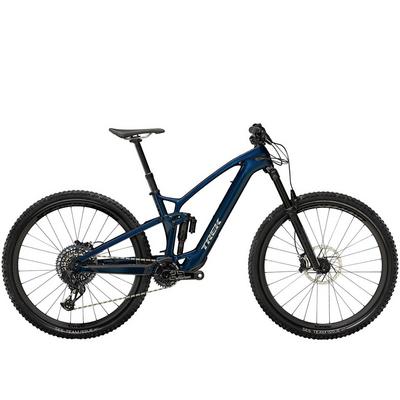

The Fuel EXe heralds Trek's first trail bike entry into the category of lightweight e-bikes. Ideally suited for anyone who wants the benefits of pedal assistance but prefers the looks and ride feel of an analogue bike. At only 19.93kg for the size medium, it's only 4kg heavier than its conventional counterpart. This tiny weight penalty is made possible with the use of a lightweight and low bulk drive system from TQ, housed in a carbon fibre frame. The TQ drive system is so quiet that the motor noise is hardly perceptible, especially when compared to high-powered e-bikes. Despite its small size, the motor still kicks out 250W and 50Nm of torque, for getting you to the top the quickly, so you can enjoy the descent with fresh legs.
The suspension platform is similar to the standard Fuel EX with 150mm of travel up front and 140mm in the rear. This is delivered by the RockShox 35 Gold RL fork and RockShox Deluxe Select+ RT shock respectively. The drivetrain is Shimano's superb value Deore 1x12 groupset. There's a monstrous 11-51 cassette so you'll have access to more gear range than you're ever likely to need.
The frame geometry is bang up-to-date for snappy handling and stability at speed so you can deathgrip through rock gardens with confidence. Trek's active braking pivot suspension design ensures that you get the full benefit of your rear suspension's shock absorption, even under heavy braking load.
If you want an electric mountain bike that balances uphill power with trail bike handling, then look no further than the Fuel EXe 9.5 (2023).
Product Code: BIFSH4AL0114
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel | |
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel | Max. compatible fork travel: 160 mm | |
RockShox Deluxe Select+ RT, 205 mm x 60 mm | |
E*thirteen E*spec Plus, 165 mm length | |
Shimano Deore M6100, long cage | |
Shimano Deore M6100, 12-speed | |
SunRace CSMZ800 11-51, 12-speed | |
Shimano Deore M6100, 12-speed | Chainring: E*thirteen E*spec, 32T alloy ring, 55 mm chainline | Max. chainring size: 1x: 34T, min 30T | |
TRP Slate EVO hydraulic disc | Brake rotor: TRP, 6-bolt, 203 mm | Max brake rotor sizes - frame: 203mm; fork: see fork manufacturer | |
Front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle | Rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle | Skewer (rear): Bontrager Switch thru-axle, removable lever | |
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" | Max. tyre size: 29" x 2.50", fork: see manufacturer | |
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width | |
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length | |
Bontrager XR Trail Comp, nylon lock-on | |
TranzX JD-YSI-22PLQ | Size S: 100 mm travel, internal routing, 34.9 mm, 346 mm length | Size M: 150 mm travel, internal routing, 34.9 mm, 454 mm length | Sizes L, XL: 170 mm travel, internal routing, 34.9 mm, 497 mm length | |
Bontrager Arvada, steel rails, 138 mm width | |
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power | |
TQ 360Wh | Charger: TQ 4A charger | |
Computer: TQ LED display with Bluetooth & ANT+ connectivity | |
15.5 MPH / 25 KPH | |
(Size M) 19.93kg / 43.94lbs (with TLR sealant, no tubes) | Weight limit: this bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb) |
Size | Rider Height | Inseam |
---|---|---|
S | 153 - 167 cm | 72 - 79 cm |
5'0" - 5'6" | 28" - 31" | |
M | 161 - 175 cm | 76 - 82 cm |
5'3" - 5'9" | 30" - 32" | |
L | 174 - 188 cm | 82 - 88 cm |
5'9" - 6'2" | 32" - 35" | |
XL | 186 - 196 cm | 87 - 92 cm |
6'1" - 6'5" | 34" - 36" |
