Description
Coming Soon. Please contact our Customer Service team if you're interested in pre-ordering.

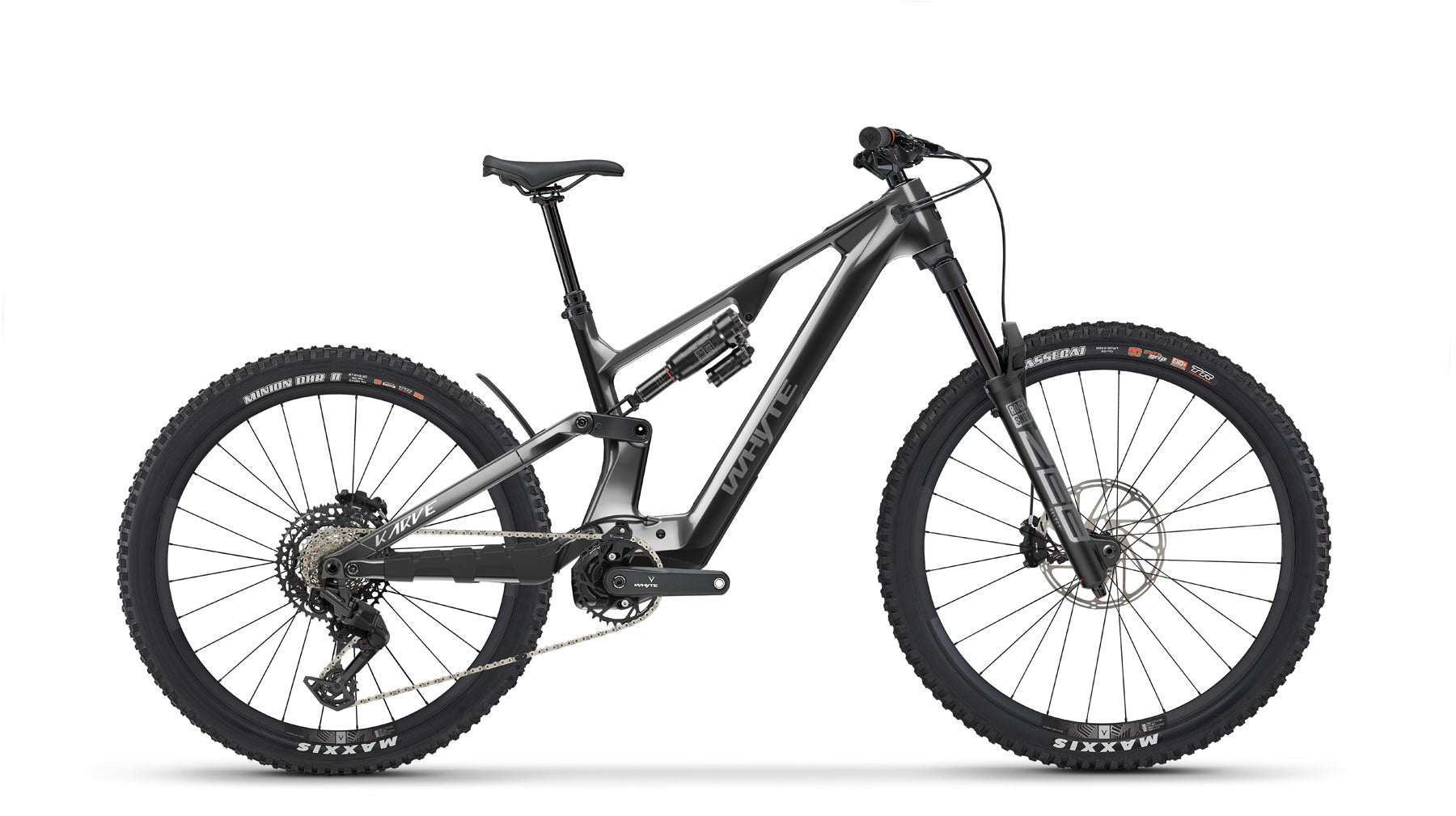

Coming soon, the new Karve Evo RS MX 2027 Mountain E-Bike from Whyte is powered by Avinox to take every ride to the next level.
Designed to take on the toughest conditions the UK terrain can throw at you, the Karve Evo RSX has a uni-directional carbon fibre front triangle with 6061 T6 aluminium rear triangle that provide strong responsiveness and shock absorption on demanding trails. At its core is the Avinox M2S motor, producing up to 150Nm of torque and 1300W peak power, giving you the ability to climb steep trails effortlessly and maximise every descent. Paired with a large 800Wh integrated battery, the RS is built for repeat laps, long sessions, and uninterrupted riding.
Equipped with a SRAM Eagle mechanical 1x12 drivetrain and powerful four-piston brakes, the RS prioritises durability and performance, offering dependable shifting and braking in all conditions. A clean cockpit with an integrated OLED display and wireless controller keeps essential ride data easily accessible while maintaining a streamlined look.
The mixed-wheel (MX) setup - featuring a 29-inch front wheel for stability and a 27.5-inch rear for agility - strikes the perfect balance between confidence at speed and responsive handling. With 180mm of suspension travel front and rear, the bike is engineered to absorb big hits, maintain traction through technical sections, and stay composed on aggressive descents.
Features:
-
180mm front and rear of Whyte custom-tuned suspension travel.
-
Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
-
Avinox full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
-
SRAM Eagle 70 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
-
Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
-
800Wh internal battery so you can get more runs in.
- MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.
Specifications
Specifications
| Battery | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. | Drive Unit: Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. | Display: Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. | Charger: Charger 4A (230V) |
| Battery Type | 800Wh |
| Brake Set | Front: SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotors | Rear: SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotors | Brake Levers: SRAM Maven Base |
| Cassette | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| Chain | SRAM Eagle 70, 12 speed |
| Crank | Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type |
| Electric Assisted Speed Limit | 15.5 MPH / 25 KPH |
| Electric Bike | Yes |
| Fork | RockShox ZEB Select, 180mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |
| Frame Material | Carbon Fiber |
| Grips | Whyte Enduro lock-on |
| Handlebars | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| Headset | ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| Hubs | Front: Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole | Rear: Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| Motor | Avinox M2S (150Nm / 1300W) |
| Pedals | Fibre reinforced composite platform |
| Rear Shock | RockShox Super Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, 230 x 62.5mm, custom tuned for Whyte |
| Rims | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29in front, 27.5in rear |
| Saddle | Whyte Custom |
| Seatpost | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| Shifters | SRAM Eagle 90, 12 speed |
| Stem | Whyte, 35mm extension, 35mm bar bore |
| Suspension Type | Full Suspension |
| Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| Wheels | Spokes: 14g stainless black, brass nipples |
| Wheel Size | 29" / 27.5" |
