Description

Size XL Coming Soon (estimated 25th June). Please contact our Customer Service team if you're interested in pre-ordering this size.

Tap into your instincts with Orbea's newly released Wild LT M20 and head for those uncompromising downhills with the relentless power and capability of this full-power, full suspension mountain e-bike. Light on weight but heavy on high performance, the Wild LT M20 has been kitted out with the DJI Avinox M2S motor with an 800Wh battery, geared up for effortless assistance as you make your way to the top whilst providing a stable, lowered centre of gravity and standover height for better handling and more space.

Featuring Orbea's Wild OMR carbon fibre frame with adjustable geometry that is totally race-ready, the Wild LT M20 is built with downhill developed full suspension that's both progressive and predictable, working with a lower pedal kickback for a more active suspension performance, resulting in confidence and grip whether you're climbing or descending. The Steep N Deep frame design has been included as part of Orbea's philosophy that the lower the saddle, the faster you go. With 29-inch wheels and chunky Maxxis tyres keep things confident in the rough, plus electronic shifting and dropper seatpost with a motor remote to ensure control remains under your fingertips, demand everything from the trails as you step out on the Wild LT M20.

Features:

  • Light on weight, not on performance: low, stable and fast
  • Designed for performance with a low and centred weight distribution, plus a low standover height and frame weight
  • Downhill developed suspension: progressive but predictable and a lower pedal kickback for a more active suspension and grip that works both ways; climbing or downhill
  • Adjustable race ready geometry with 29-inch wheels, as well as Flip Chip adjustment, headset adjustments and short cranks
  • Steep N Deep for a lower saddle = faster bike
  • Electronic shifting and dropper with a motor remote
  • Size of the Avinox M2S motor allows Orbea to build the suspenion pivots in the optimal position, and the motor and battery package allows them to lower the centre of gravity and standover height
  • 800Wh battery
  • Brand colourway: Magic Gold / Titan Gold Gloss

Notice:

  • Please note: Orbea reserve the right to modify, without prior notice, any technical specifications of the product (including sizes, designs, assembles, etc.)

Specifications

Battery Type DJI Avinox 800Wh | Charger: DJI Avinox Charger 4A
Brake Set Shimano MT420 Hydraulic Disc | Rotors: Galfer Wave Rotors 200mm front / 200mm rear
Cassette Shimano CS-M6200 10-51t 12-Speed
Chain Shimano M6100 | Chainring: e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine | Chainguide: Orbea eBike chainguide
Controller DJI Avinox BC100
Crank e*thirteen Helix Core e*spec
Electric Assisted Speed Limit 15.5 MPH / 25 KPH
Electric Bike Yes
Fork RockShox ZEB Base DebonAir+ 170 E-MTB specific 15x110 Boost
Frame Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148
Frame Material Carbon Fiber
Grips OC Lock On
Handlebars OC Mountain Control MC30, Rise20, Width 800
Headset Acros ZS56
Motor DJI Avinox M2S | Display: DJI Avinox DP100
Pedals ** Pedals not included **
Rear Derailleur Shimano Deore M7200 SGS Shadow Plus
Rear Shock Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Saddle Fizik Aidon 208x145mm manganese rail
Seatpost OC Mountain Control MC22, 31.6mm Dropper | Seatpost lever: Shimano SL-MT500 I-Spec EV
Shifters Shimano Deore M6200 I-Spec EV
Stem OC Mountain Control MC21, 0º | Computer mount: OC Computer Mount CM-05, Garmin/Sigma
Suspension Type Full Suspension
Tyres Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR | Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR
Wheels Race Face AR 30c Tubeless Ready
Wheel Size 29"

Delivery

Bike Delivery (£24.99)

Delivered within 5-10 working days. This service is for orders with a large item which cannot be shipped with our regular carriers. Delivered by specialist courier who will provide updates. Please provide an accurate phone number and email address.

Click and Collect

Pay online now and the items will be delivered to store for you to collect. Orders will be kept in store for 14 days before being cancelled.
You will be notified when your order is ready to collect. Please do not travel to store until you have been notified.

Returns

Returning orders to us is easy. Whatever your reason, we offer a refund or exchange within 30 days of delivery or collection.

Find out more

Complete the look

Related

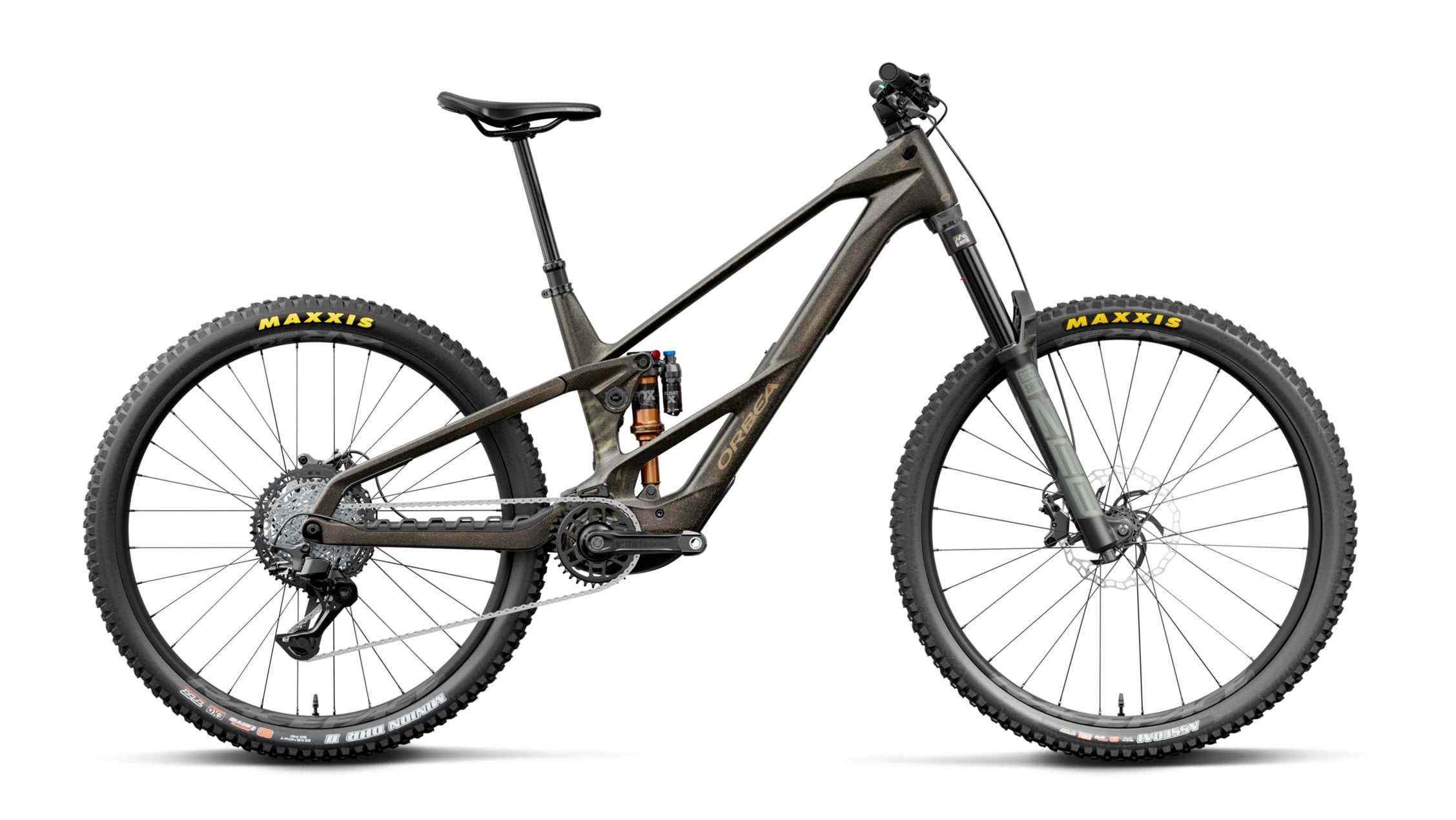

Orbea Wild LT M20 2027 Mountain E-Bike - Green
