Description

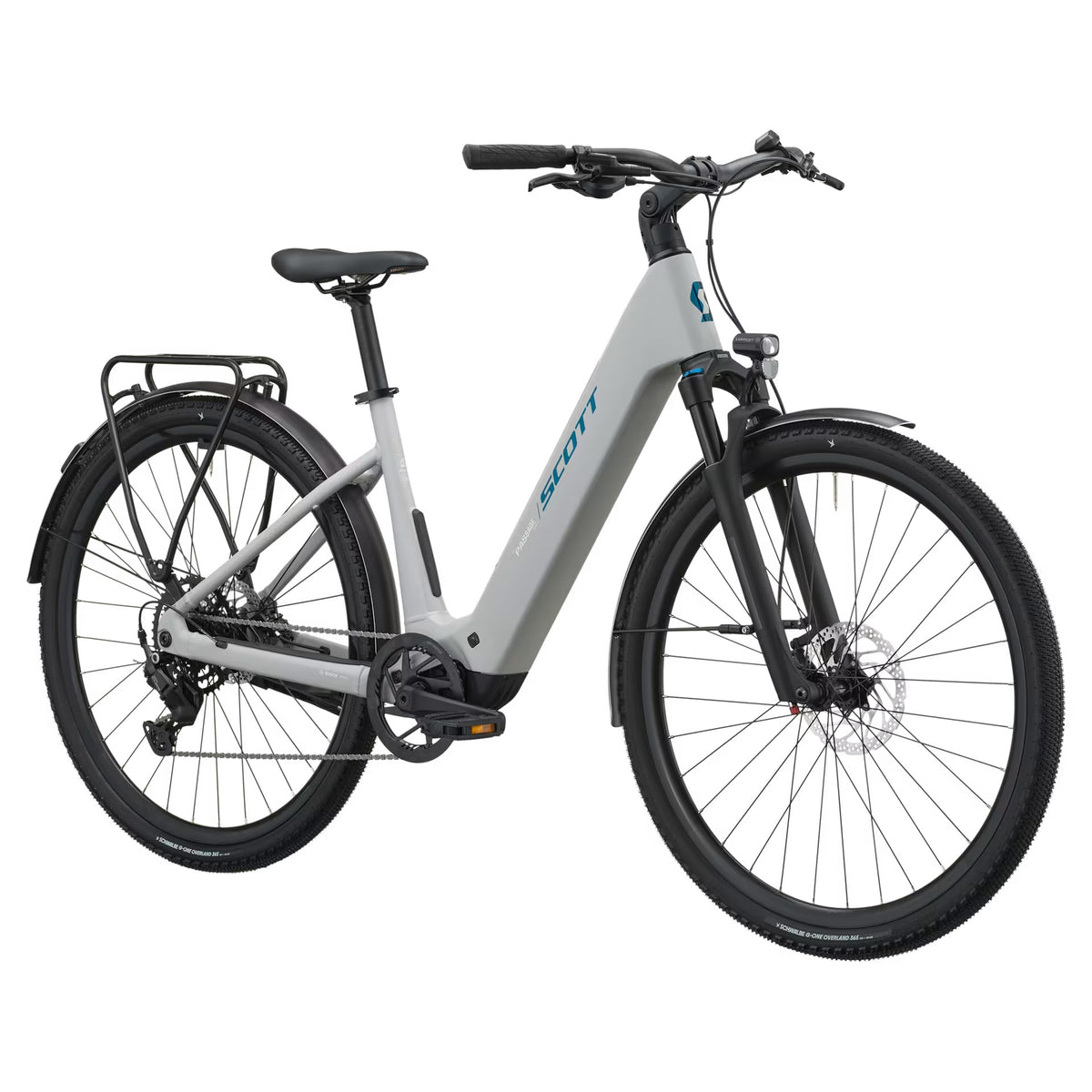

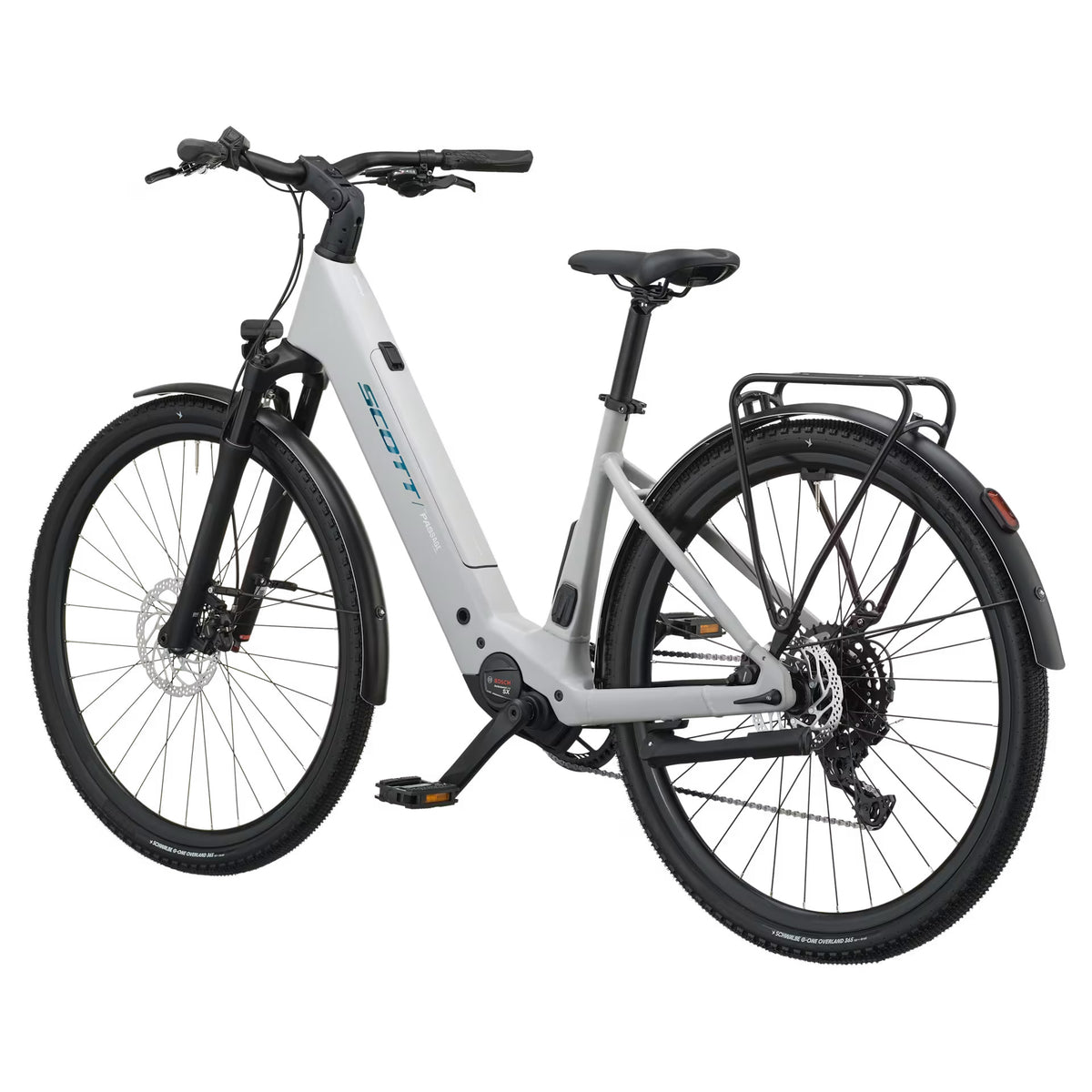

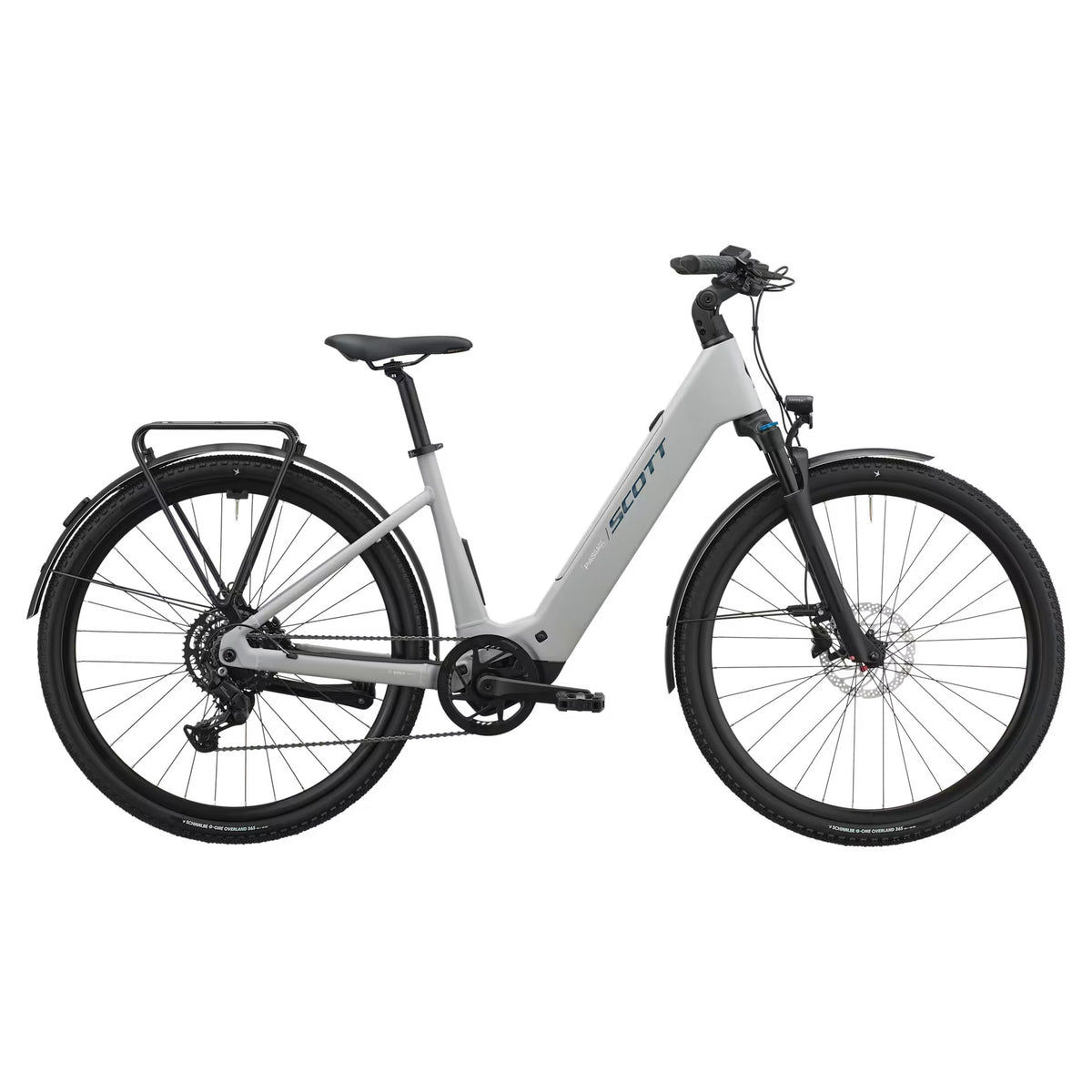

Cruise through your commute or along city streets on a weekend adventure with Scott’s Passage 20 Wave Hybrid E-Bike. Designed with a strong alloy frame in a full step-through construction, the Passage 20 Wave suits a range of riders, short to tall, for a comfortable ride that’s also adjustable through the handlebars so you can tailor the bike to your preferred comfort level and riding style.

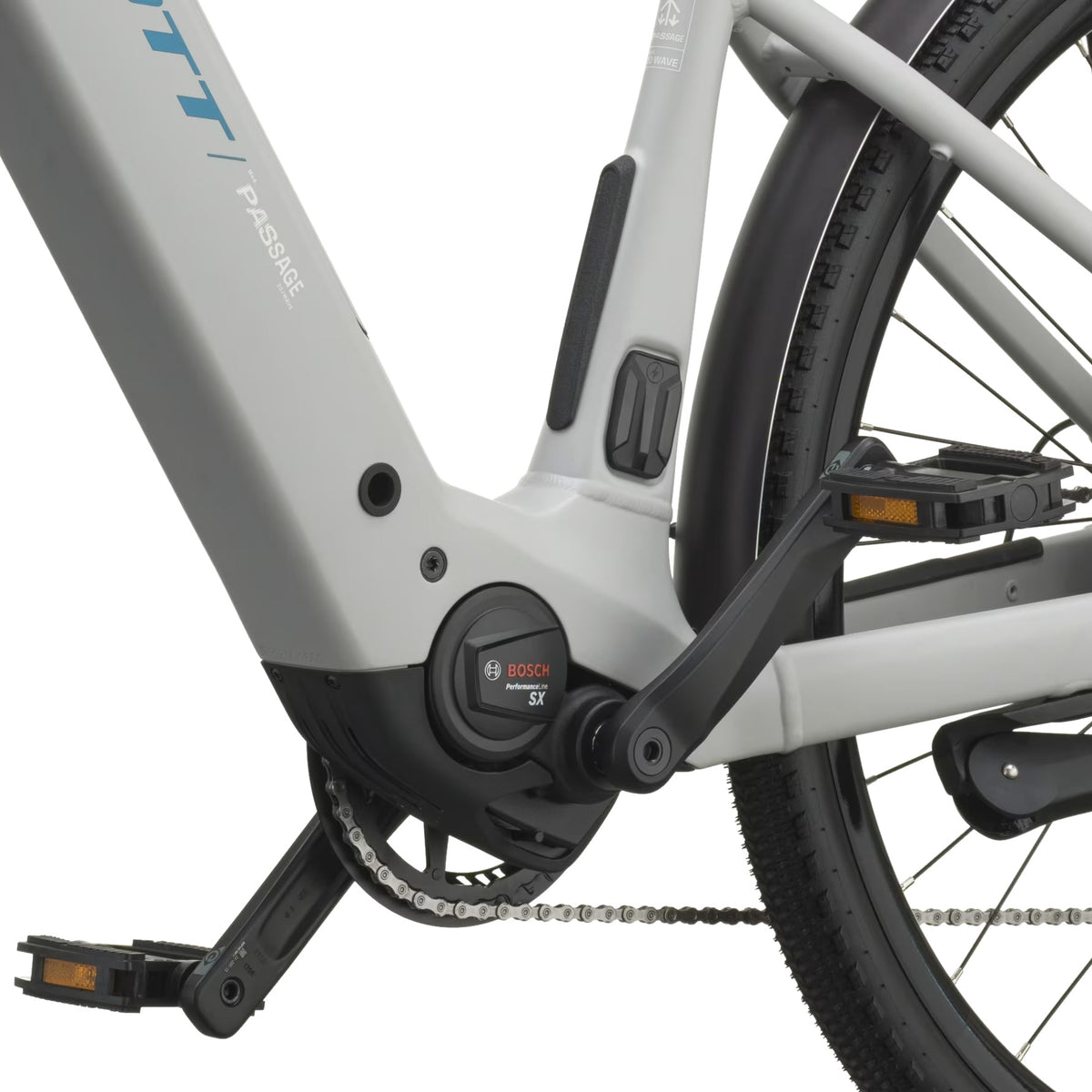

At the centre of this commuting cruiser is the Bosch Performance Line SX motor, paired with an integrated CompactTube 400Wh battery for an effortless performance at the pedals whilst maintaining a natural feel, 55Nm of torque and a favourable Q factor. Positioned low in frame and weighing in at just 2kg, the Bosch motor is a reliable favourite, supplying range that’ll get you where you need to go.
Handily featuring an SR Suntour suspension fork with 75mm of travel to smooth out cobbles and unavoidable potholes, the Passage 20 also has 45mm tyres for added stability, a Shimano CUES 9-speed drivetrain for reliable shifting and Shimano disc brakes for smooth, efficient and safe stopping power. Equipped with accessories to enhance your leisure or commuting experiences, this bike comes with front and rear lights, fenders, a kickstand and the Racktime rear rack, engineered to support up to 20kg so you can load up with shopping, a gym duffel or your work bag. Touring the town or weaving your way to the office on the commute, the Passage 20 Wave from Scott is geared up and kitted out with everything you need for a smooth, powerful and reliable cycling experience.
Features:
- Bosch Performance Line SX with 400 Wh battery: 55Nm of torque, the lightest drive unit in the Bosch range - compact, sporty and paired with the integrated 400Wh CompactTube battery

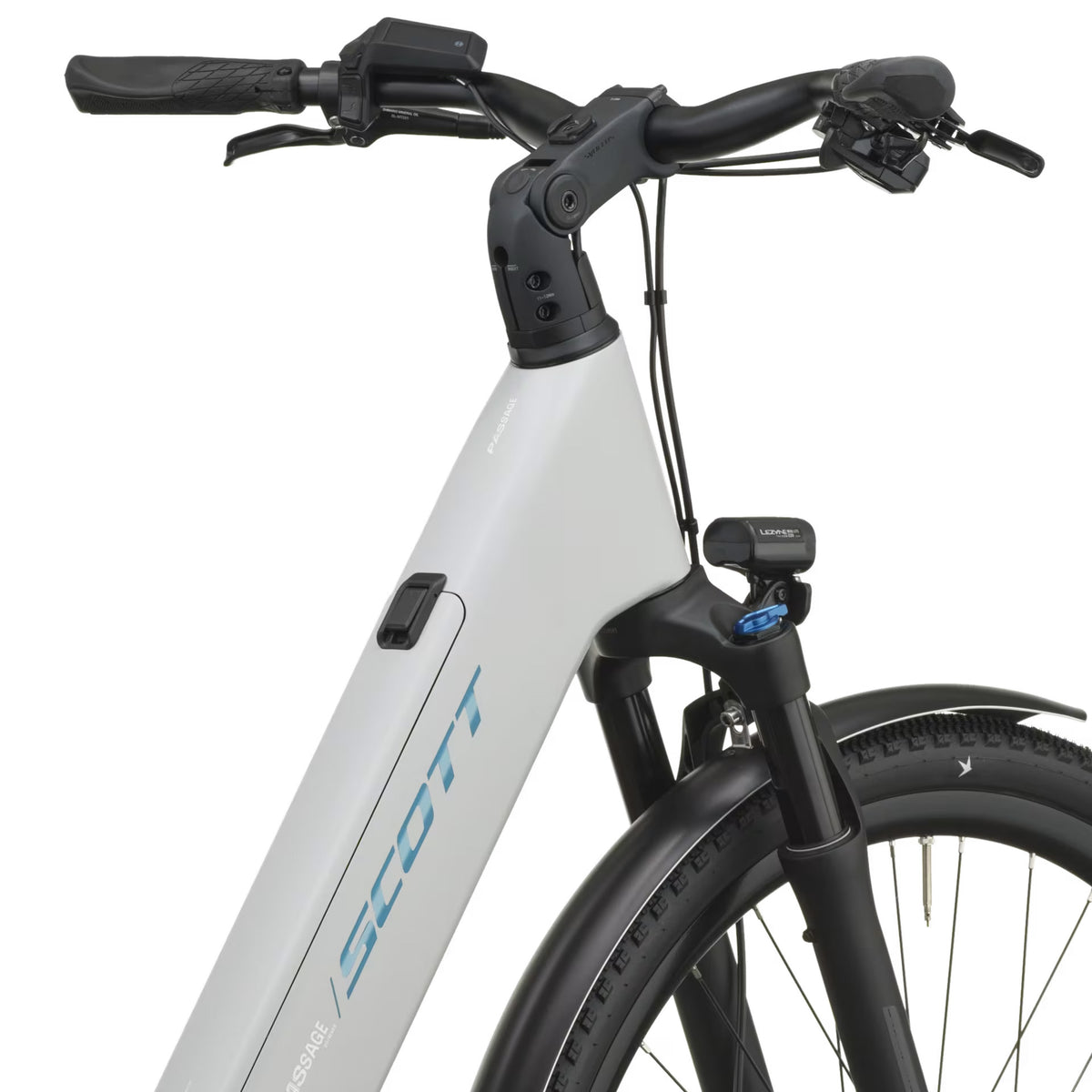

- Adjustable stem: allows you to raise or lower the handlebar to improve comfort, make you body and ride style
- Rear rack supports up to 20kg, making it easy to carry groceries and other essentials
- Step-through frame: open design makes it easy to mount and dismount for riders of all sizes

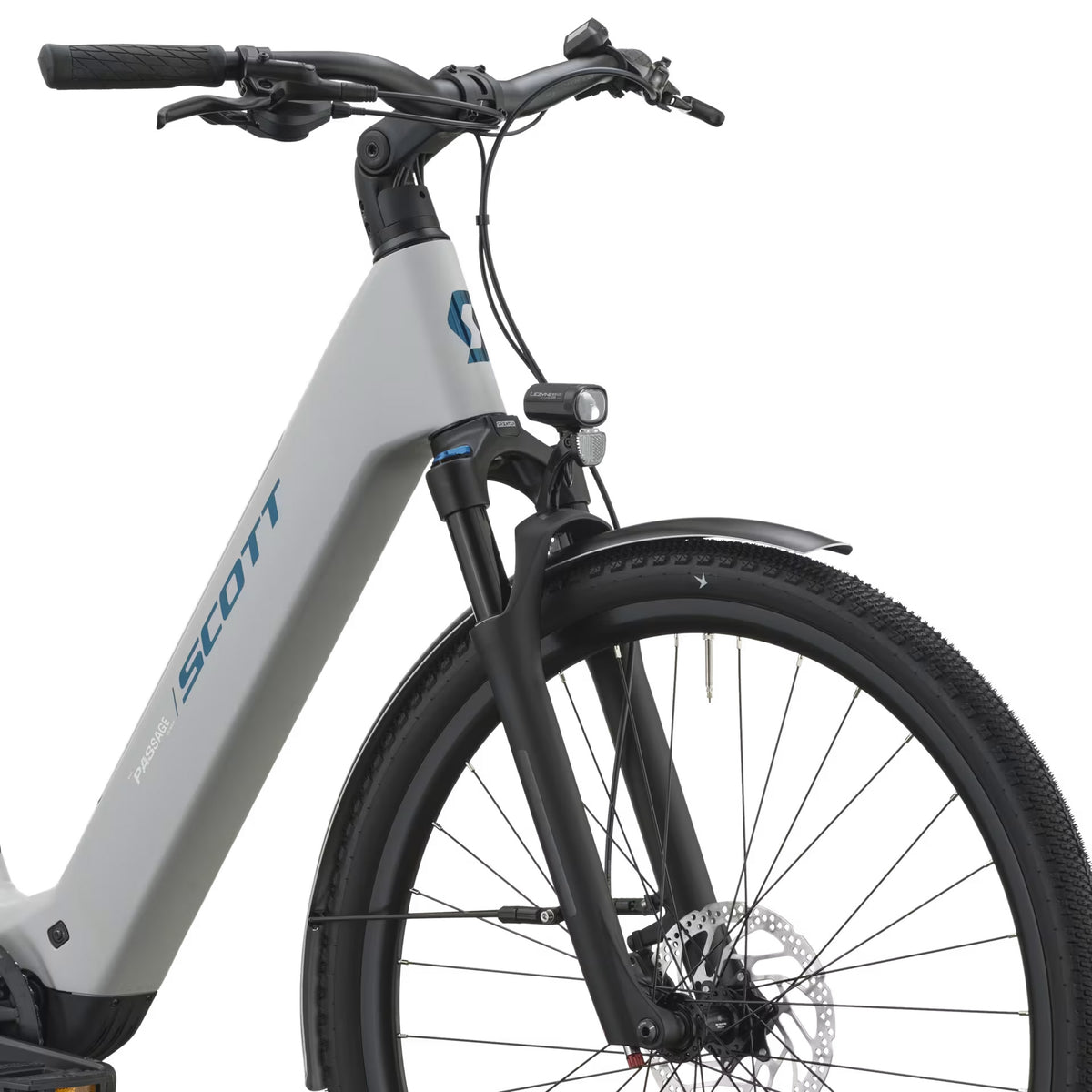

- SR Suntour 75mm suspension fork to soften rough pavements
- Schwalbe G-One Overland 45mm tyres add stability and durability no matter what comes your way

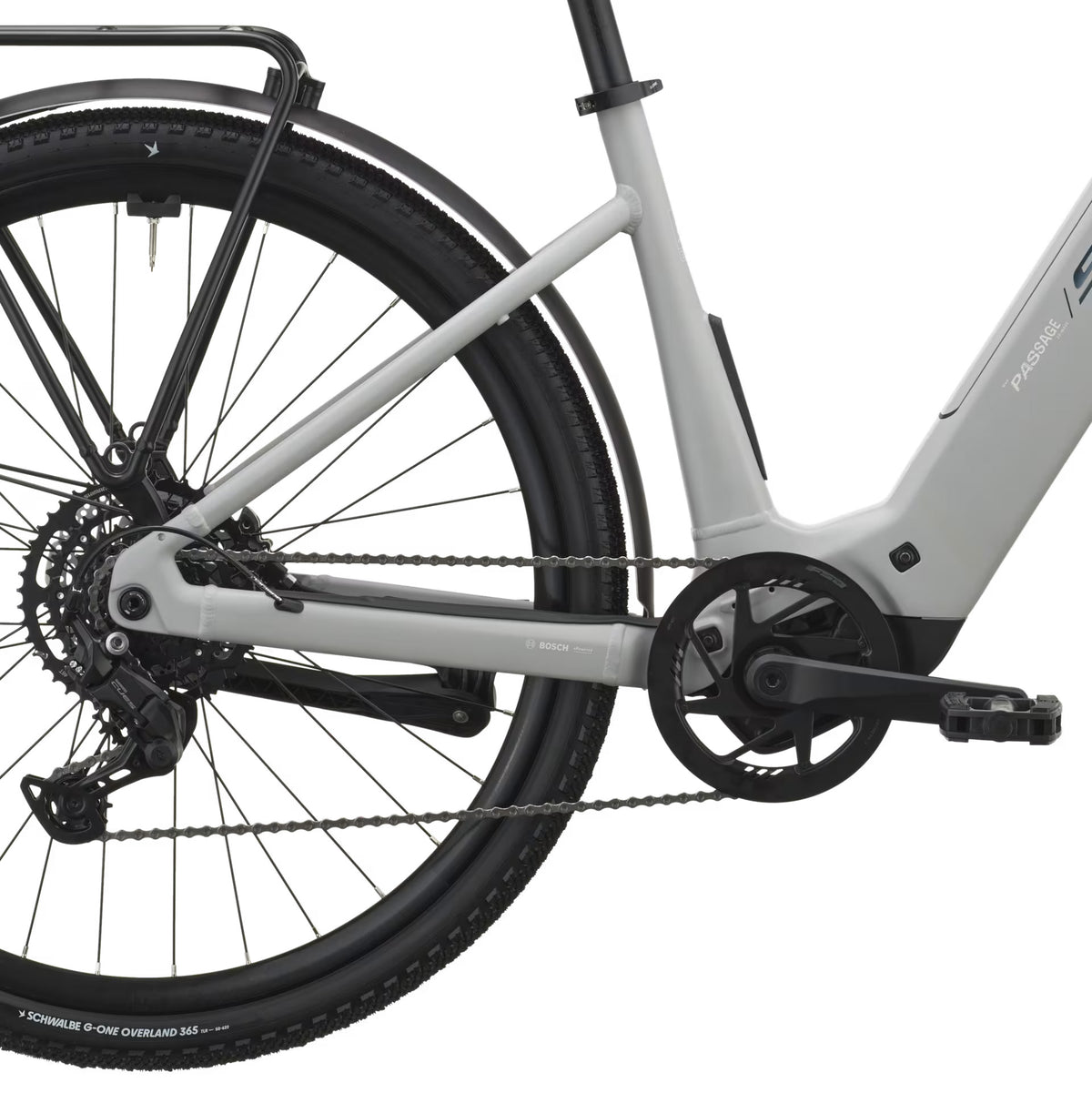

- Shimano CUES 9-speed drivetrain gives a gearing range to ride around like a pro
- Passage alloy frame
- Shimano 2-piston disc brakes for smooth, efficent and safe stopping power
- Brand colourway: Signal Grey
- Weight: 22.2kg / 48.94lbs
- Max. system weight: 130kg (overall weight includes the bike, the rider, the equipment, and possible additional luggage)
Accessories:
- Front light: Lezyne Mini Lite STVZO E350
- Rear light: Rear Supernova TL3Z
- Rack: Racktime carrier Snapit 2.0 20kg
- Fenders: Curana C-Lite 55
- Kickstand: Hebie IC Kickstand
Notice:
- Please note: Scott state that bike specifications are subject to change without prior notice.
Specifications
Specifications
| Battery Type | Compact Tube 400Wh | Charger: Bosch 2A Charger 230V |
| Brake Set | Shimano BR-MT201 2-Piston | FRONT disc rotor: Shimano SM-RT30 CL, 180mm | REAR disc rotor: Shimano SM-RT30 CL, 160mm |
| Cassette | Shimano Cues CS-LG300, 9-Speed 11-46T |
| Chain | Shimano CN-LG500 | Chain ring: FSA 42T DM With Chainguard |
| Controller | Bosch Purion 200 |
| Crank | FSA CK 220 170mm |
| Electric Assisted Speed Limit | 15.5 MPH / 25 KPH |
| Electric Bike | Yes |
| Fork | SR Suntour NRX32 E AIR LO with 75mm travel |
| Frame | Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery |
| Frame Material | Alloy |
| Grips | Urban Comfort |
| Handlebars | Syncros UC3.0 680mm, Rise 26mm, Backsweep 30° |
| Headset | Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup |
| Hubs | FRONT: Shimano HBTC50015B CL, 15x100mm | REAR: Shimano FH-TC500 142mm |
| Motor | Bosch Performance Line SX |
| Pedals | Marwi SP-827 |
| Rear Derailleur | Shimano Cues RD-U4000 9-Speed |
| Rims | FRONT & REAR: X15 Disc |

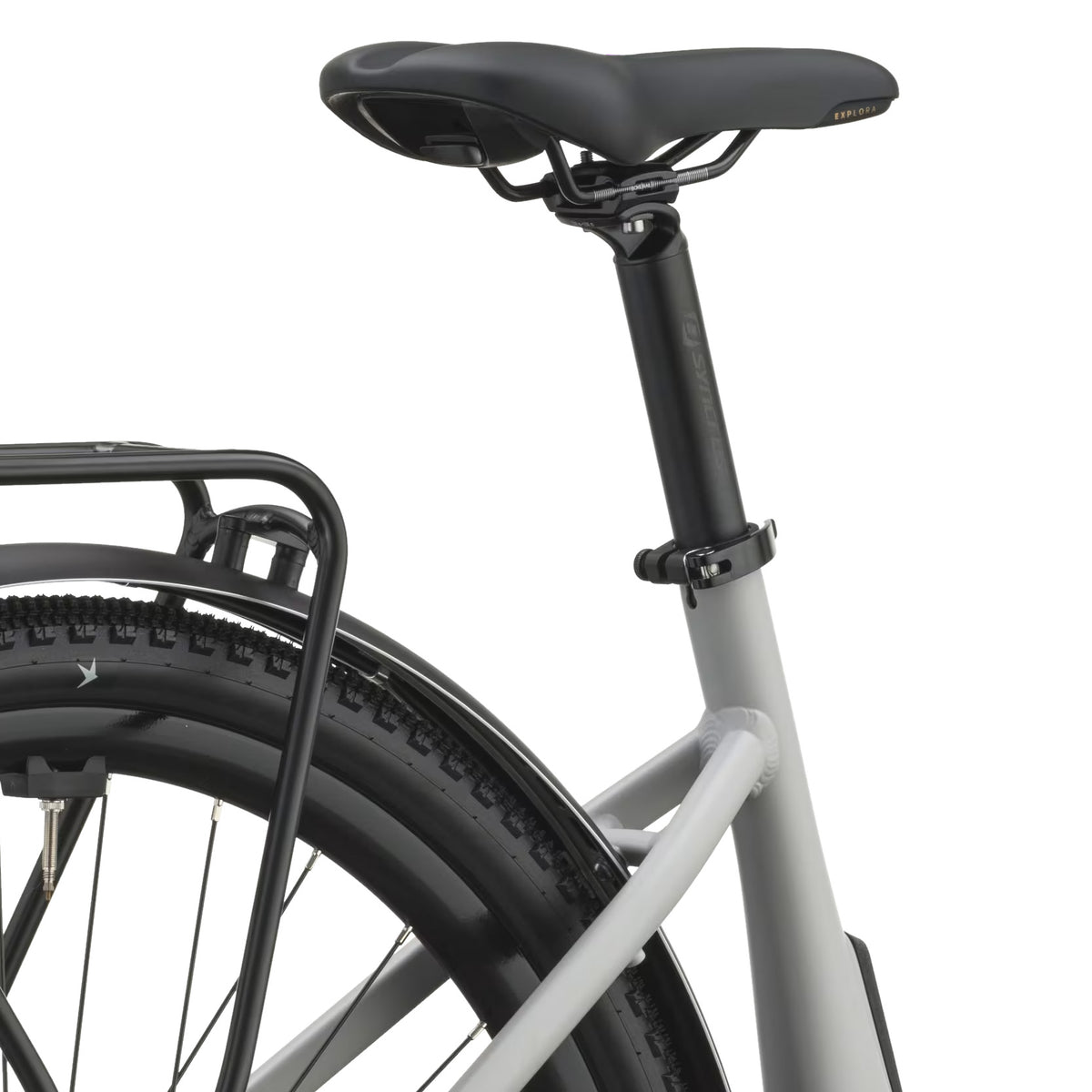

| Saddle | Selle Royal Explora Athletic 155mm |
| Seatpost | Syncros M3.0, 31.6mm, 350mm |
| Shifters | Shimano Cues SL-U4000 With Display |
| Stem | JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect |
| Suspension Type | Front Suspension |
| Tyres | FRONT & REAR: Schwalbe G-One Overland 365 Perf, 700x50C |
| Wheels | Spokes: Stainless Black 13G |
| Wheel Size | 700 |
