Description

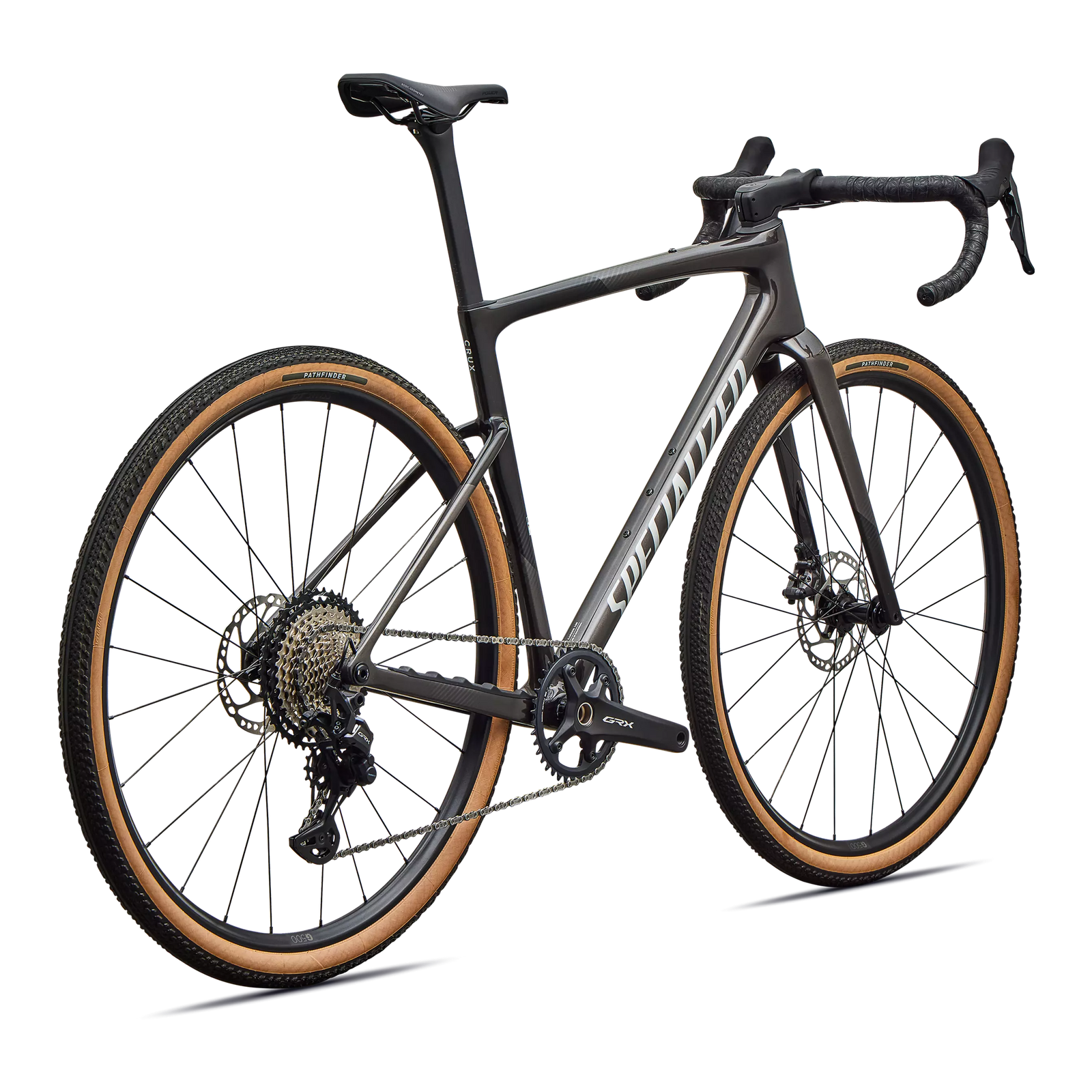

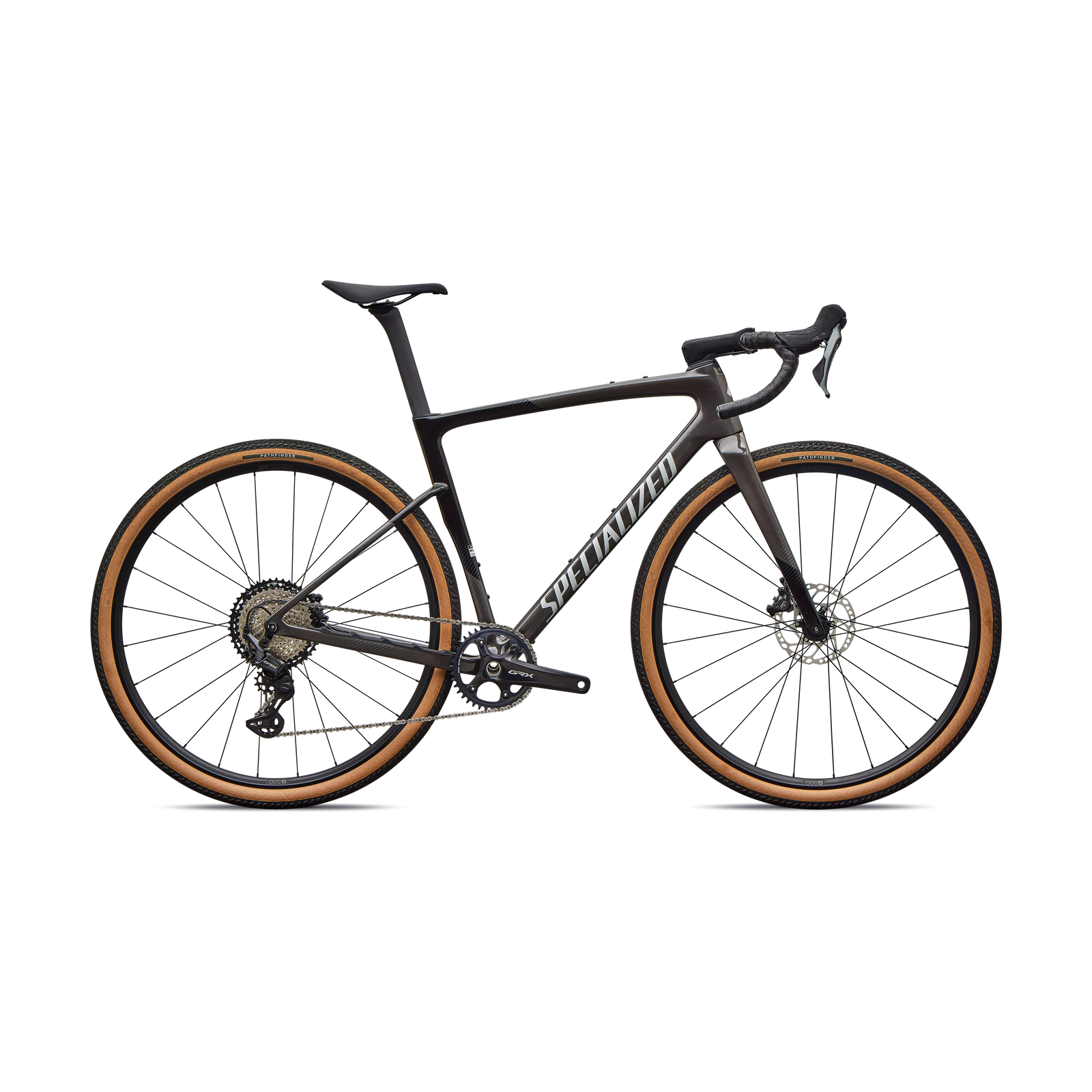

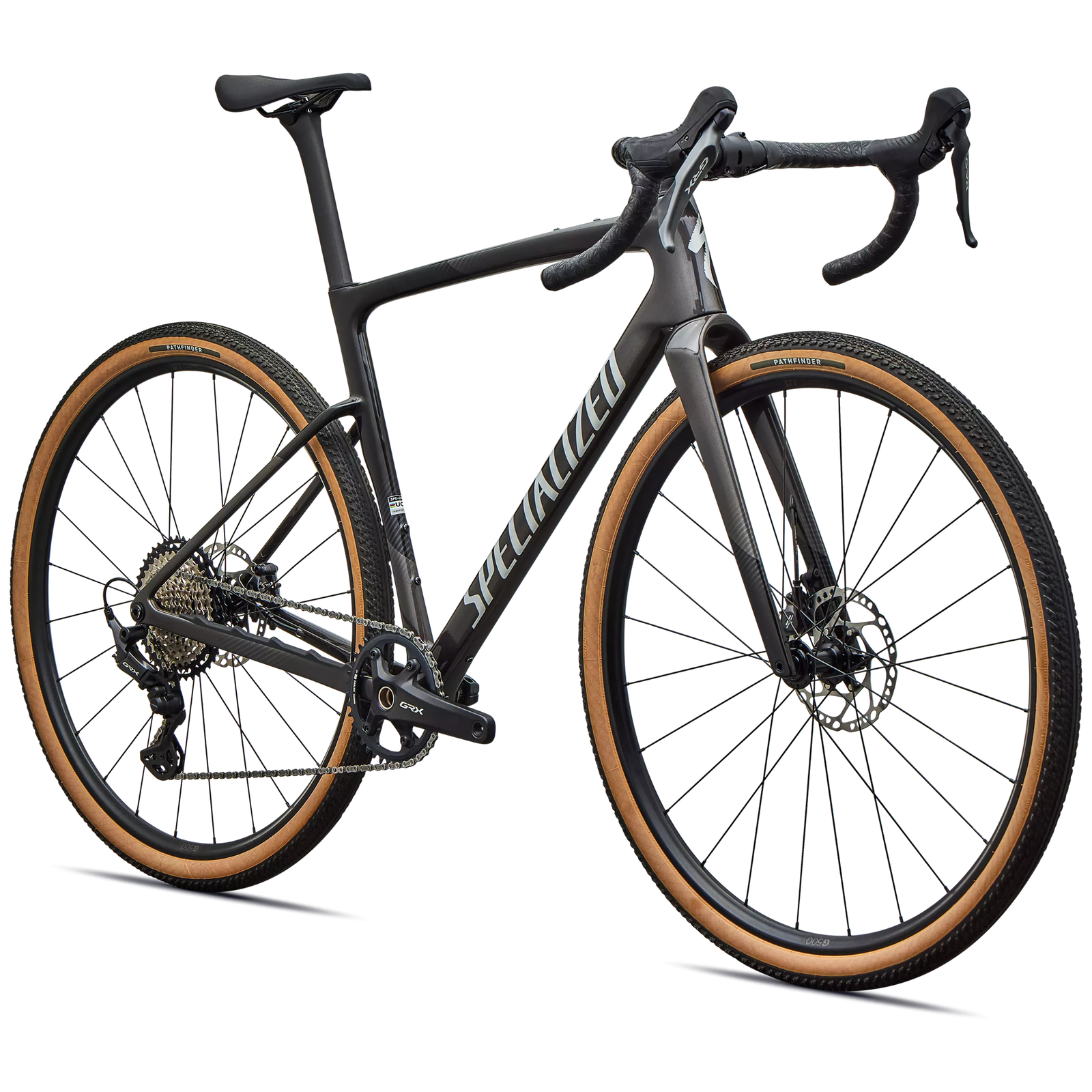

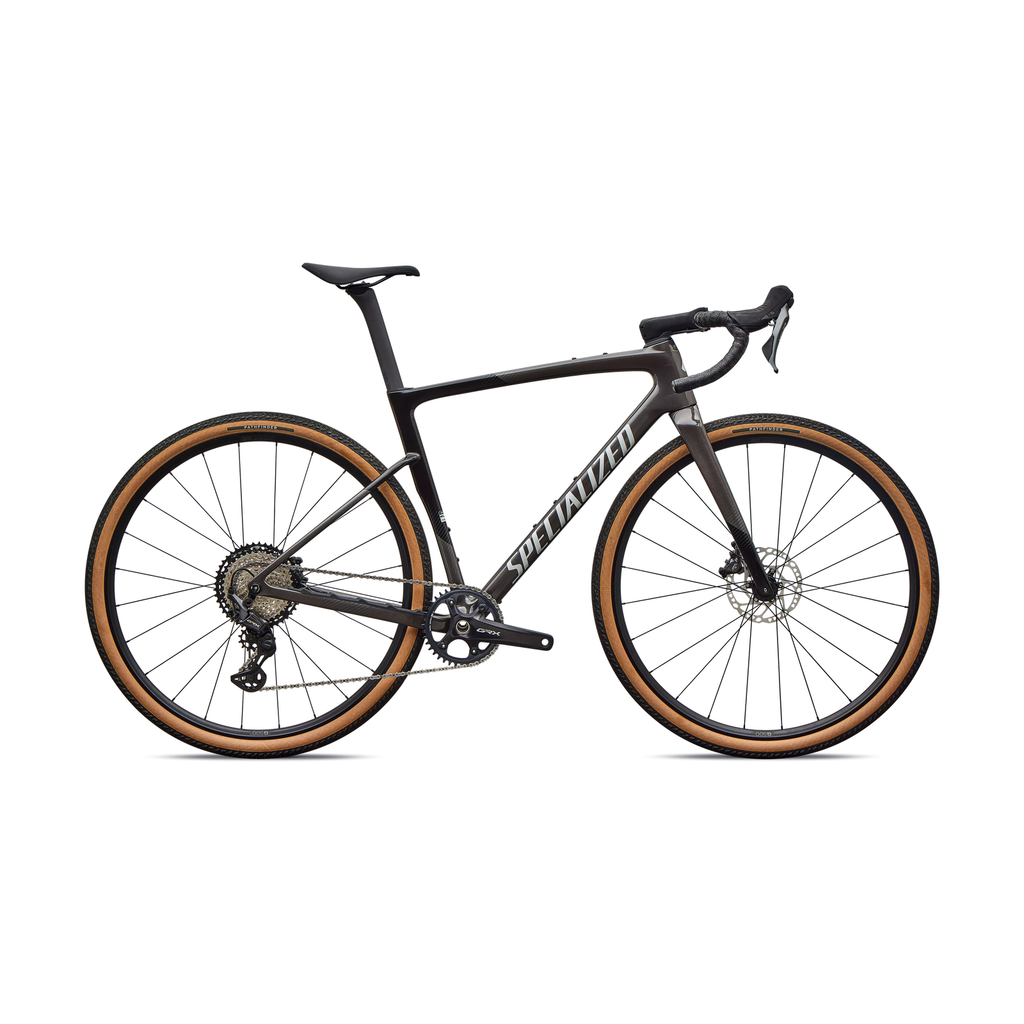

Specialized’s most aerodynamic gravel race bike they’ve ever created, the Crux 5 is a speed machine – inspired by the lessons of the Tarmac SL8 and decades of research in the aero discipline. Now, Crux 5 Sport sits at the height of elite gravel racing for its unmatched speed, telepathic handling and balanced compliance to keep fatigue at bay. Sporting a Flow State Design in the FACT 10r carbon frame, it’s one of the very lightest currently on gravel, weighing in at an impressively small 897g without compromising strength and handling.
The Rider First engineered creates an inclusive bike for riders of all sizes thanks to improved balance with shorter stems (in the longer size specific reach), increased confidence at speed with a slacker head and angle and that “in the bike” stability that stems from a lower bottom bracket height. And, the Crux 5 Sport now has the ability to switch out the Pathfinder 700x45mm tyres for something much chunkier with tyre clearance up to 55mm whilst maintaining its effortless handling, just with better traction.
Race day ready when speed is key, the Crux 5 Sport will turn more of your effort into pure speed with its unparalleled aerodynamics and unheard of levity – and even better, it currently delivers the lowest real-world Time to Finish of any gravel bike ever made.
Features:
- Flow State Design delivers a 897g frame - one of the very lightest on gravel
- More aerodynamic at up to 5.8 watts faster with better handling - still nimble but smoother with better traction
- Delivers telepathic handling, instantaneous acceleration and balanced compliance that reduces fatigue on the roughest courses
- Rider First engineered and now with 55 / 2.2" mm tyre clearance for unmatched traction and comfort
- Improved balance with shorter stems (longer size specific reach)
- Increased confidence at speed with a 0.5° slacker head angle
- "In the bike" stability with big tyres and a lower bottom bracket height
- More efficient power position and tyre clearance with a 0.5° steeper seat angle
- Aero Gains Breakdown: frame, fork and seatpost - 50%, Roval Terra Aero wheels - 30%, Roval Terra cockpit - 20%
- Unbound Winner Sófia Gómez Villafañe’s Time to Finish at Unbound would be 9:58 faster on the Crux 5
- Weight (size 56): 8.94kg / 19lbs, 11.3oz
Notice:
-
Please note: Specialized state that specifications are subject to change without notice.
- Specialized also note that weights provided are based on production painted frames as pictured. Actual weights will vary based on colourway, frame size and component variation.
Specifications
Specifications
| Bottom Bracket | Shimano Threaded BSA BB |
| Brake Set | FRONT: Shimano GRX BR-RX820 | REAR: Shimano GRX BR-RX820 |
| Cassette | Shimano XT CS-M8100, 12-speed, 10-45t |
| Chain | Shimano XT CN-M8100, 12-speed |
| Crank | Shimano GRX FC-RX820, 40t |
| Electric Bike | No |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Frame | Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Frame Material | Carbon Fiber |
| Grips | Supacaz Super Sticky Kush |
| Handlebars | Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare |
| Rear Derailleur | Shimano GRX RD-RX822-GS, 12-speed |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset | Seat binder: Integrated Wedge |
| Shifters | Shiimano GRX ST-RX820 |
| Stem | Roval Rapide, alloy, 4 bolt, -6 degrees |
| Tyres | FRONT: Pathfinder 700x45, Tubeless Ready | REAR: Pathfinder 700x45, Tubeless Ready |
| Wheels | FRONT: DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples | REAR: DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples | Inner tubes: 700x32-50mm, 40mm Presta valve |
| Wheel Size | 700 |
Returns
Returns
Returning orders to us is easy. Whatever your reason, we offer a refund or exchange within 60 days of delivery or collection.
Complete the look
Related

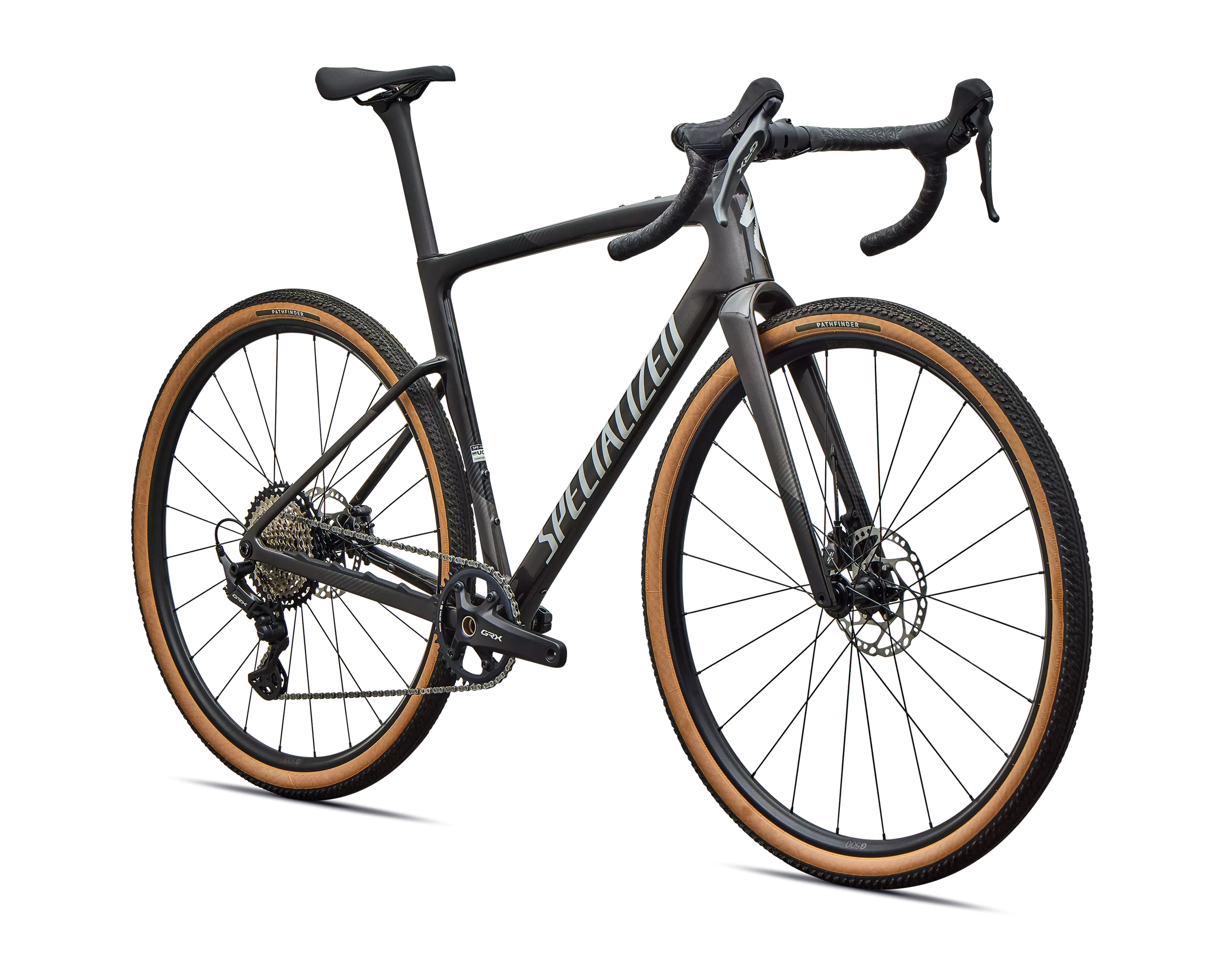

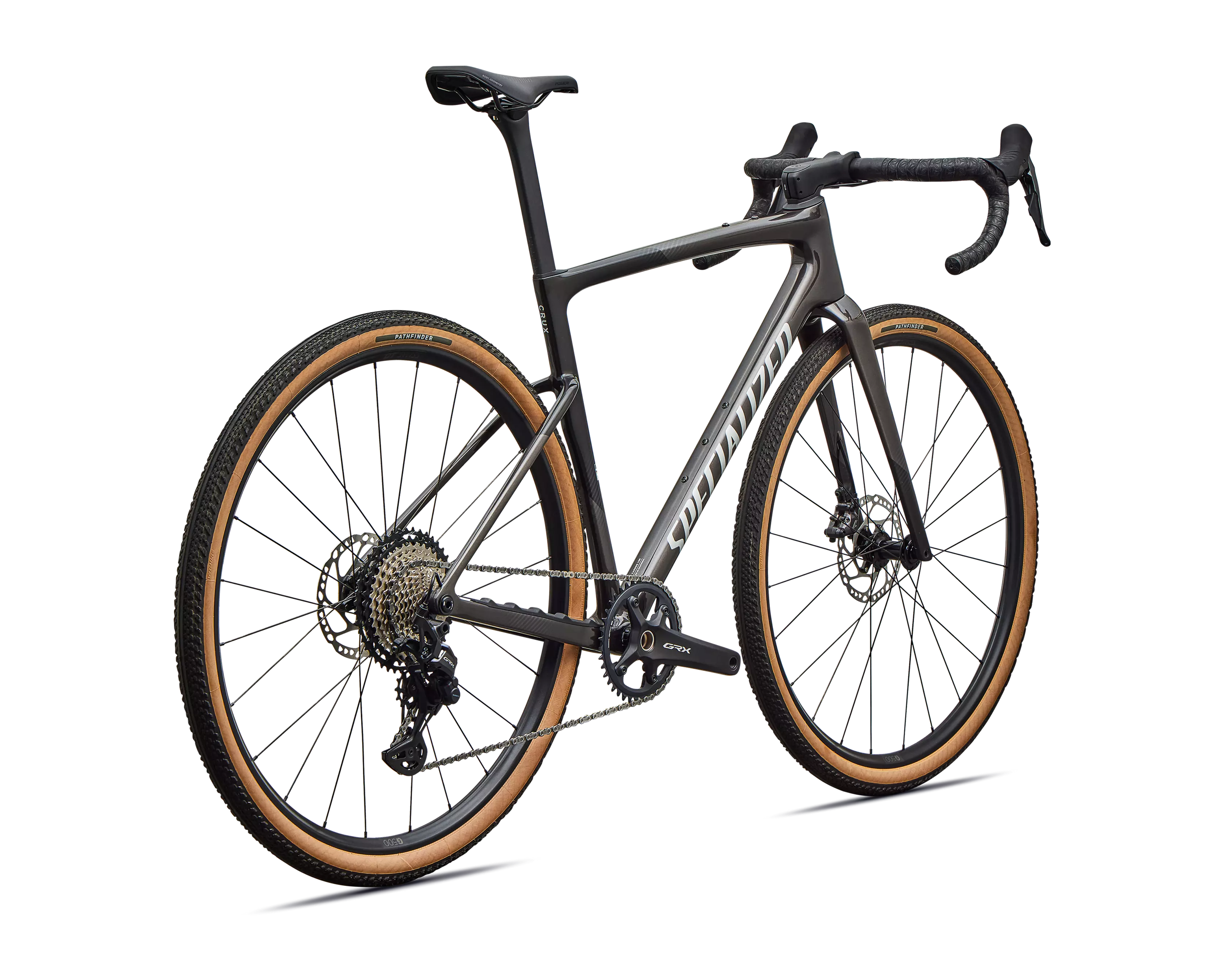

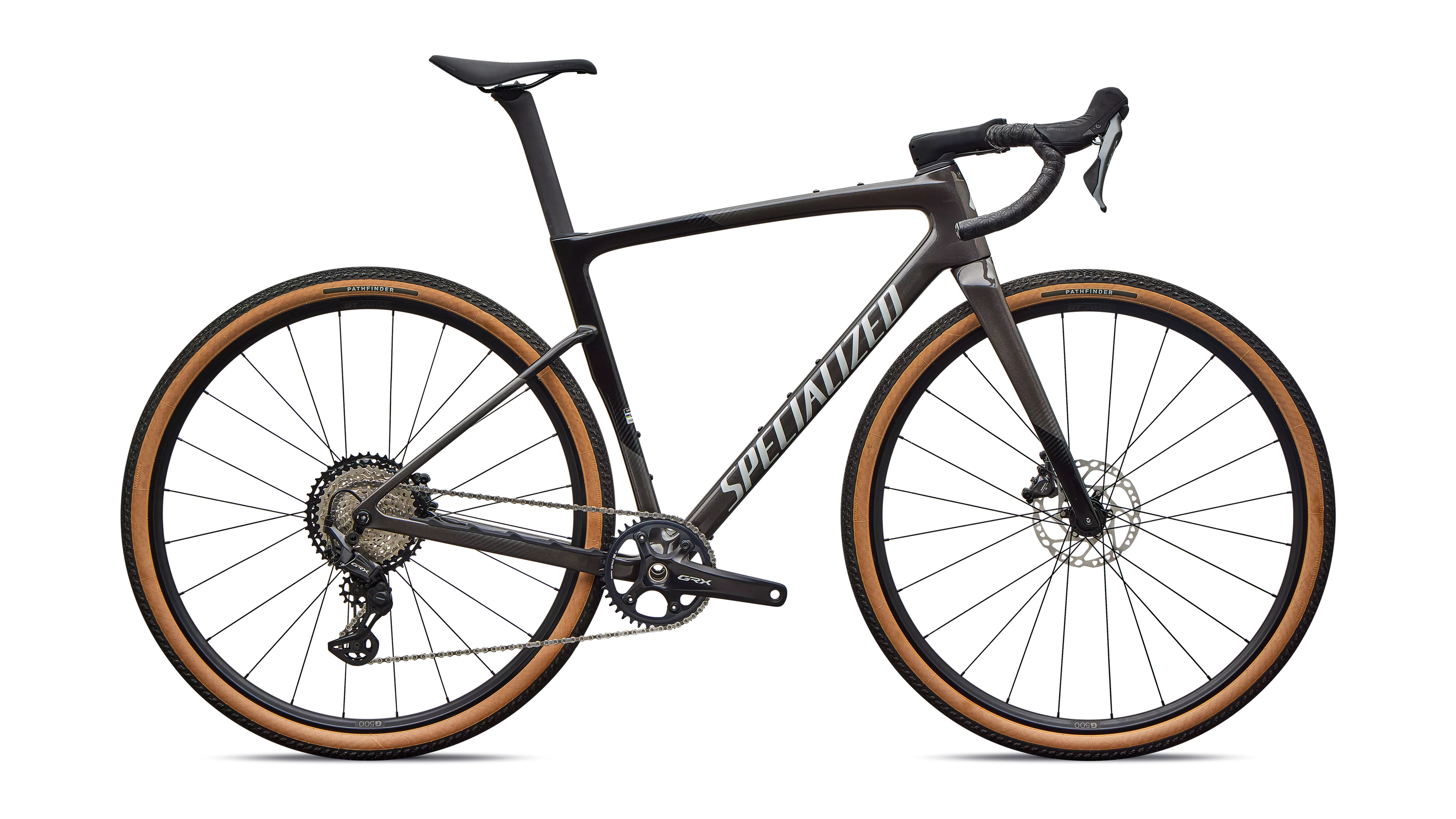

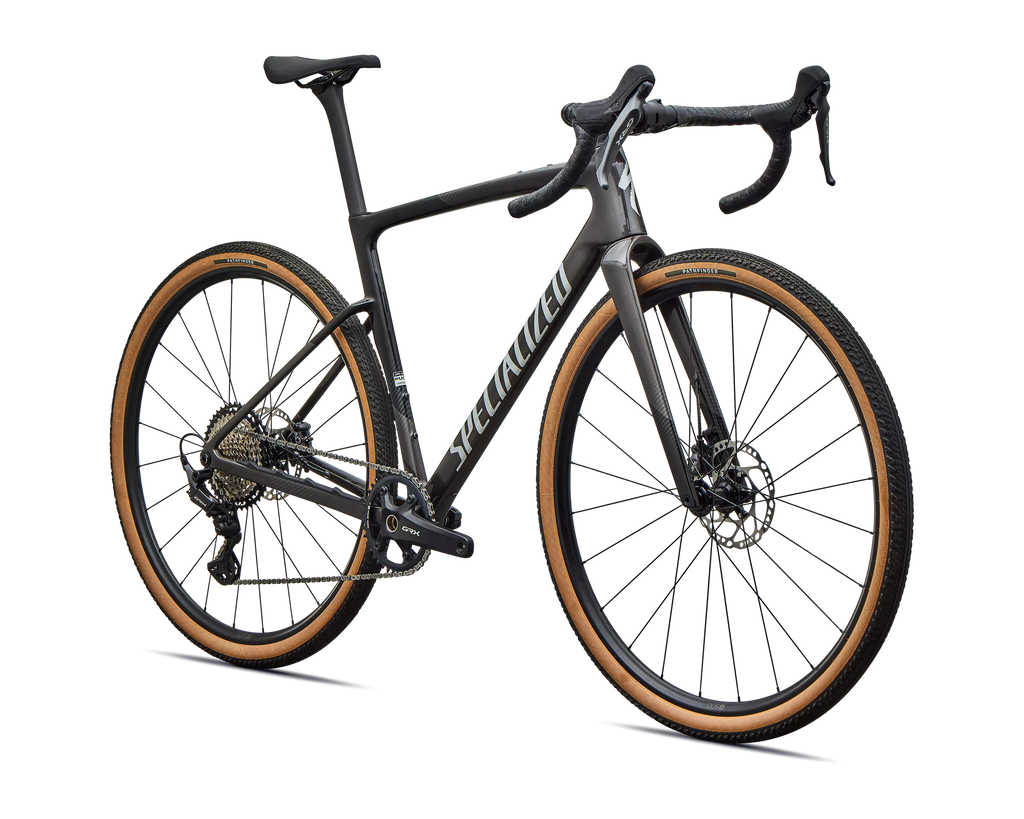

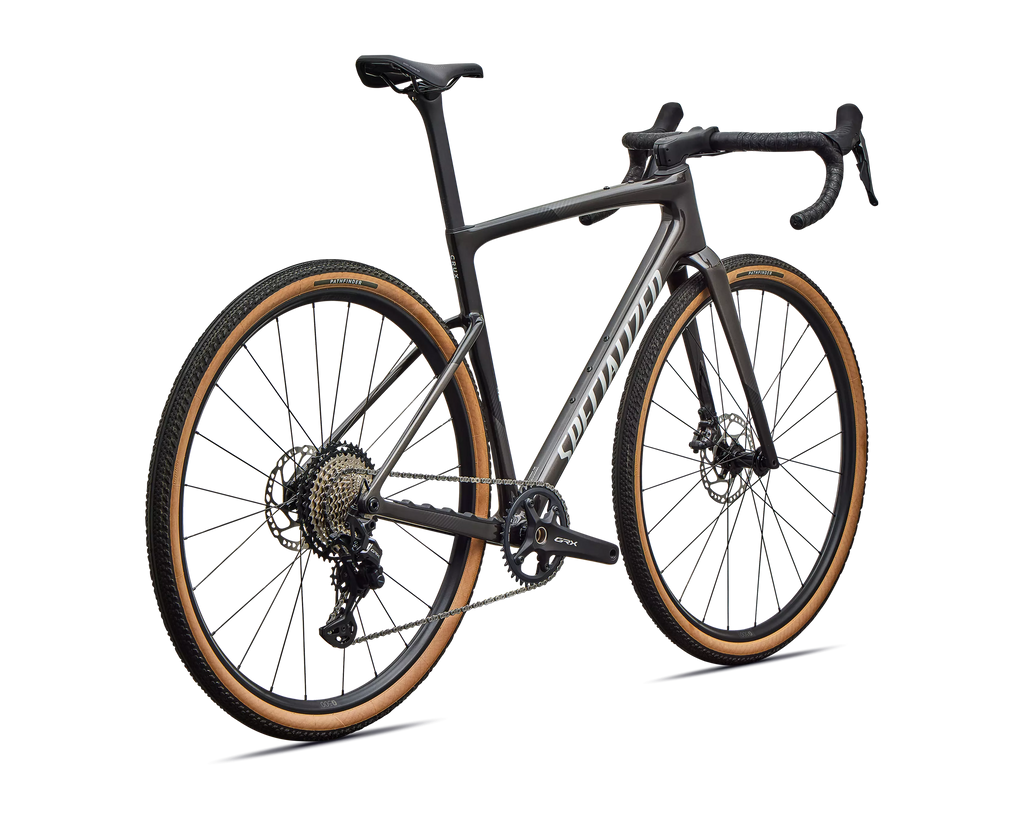

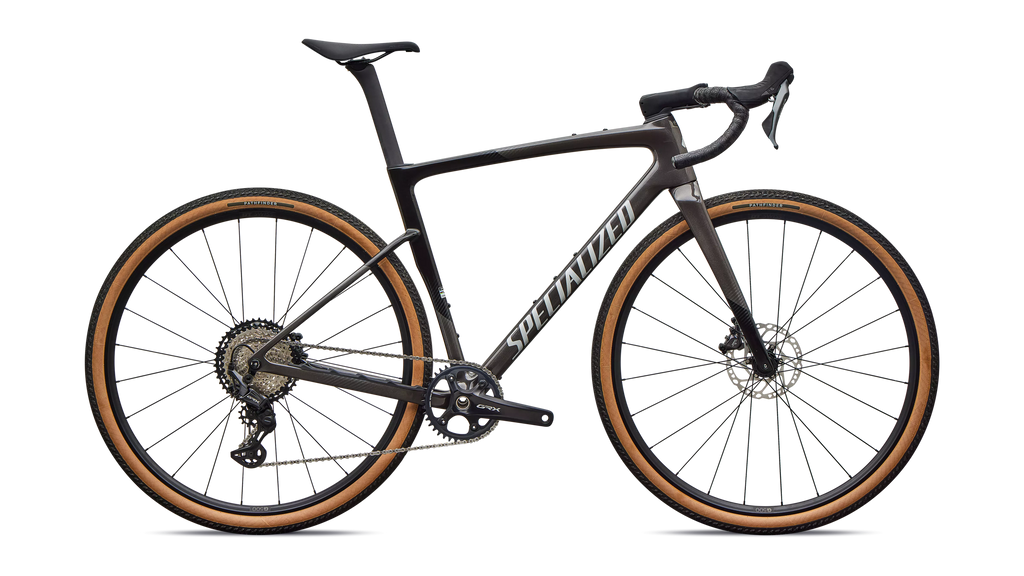

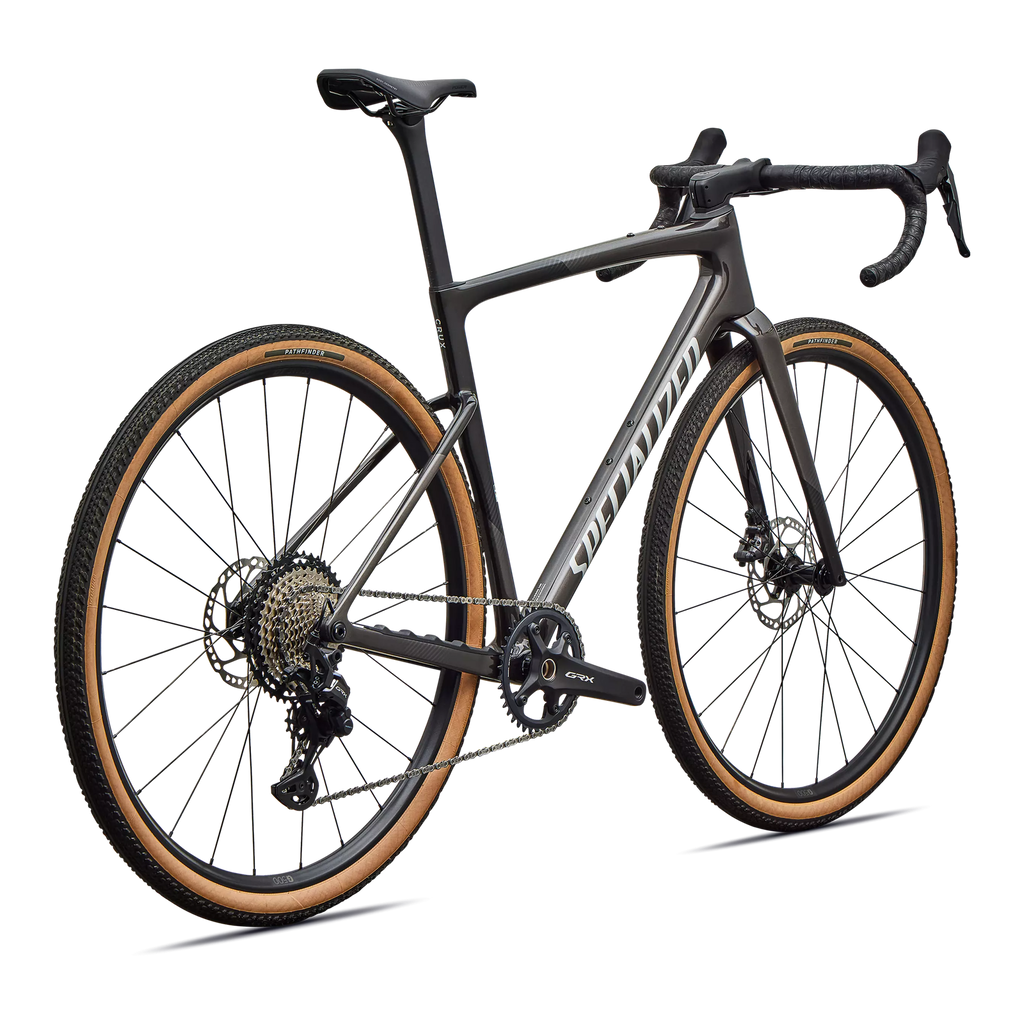

Specialized Crux 5 Sport 2027 Gravel Bike - Black
