Description
Ideal for long, adventurous rides, the new CheckOUT SL 5 Gravel Bike from Trek is packed with features to ensure you ride smoothly. The carbon construction, refined geometry, and purpose-designed components of this bike make it well-suited for various terrains, from rough fire roads to mixed terrain tracks and long, remote gravel rides. The drivetrain, wheels, and tyres are engineered for performance, rather than just casual riding, ensuring efficient pedalling and strong braking and handling when the terrain gets challenging.
This bike is ideal for mixed terrain, perfect for rides that include a combination of pavement, loose gravel, forest trails, and even some singletrack sections. With front and rear suspension, you'll experience smoother landings, reduced vibrations on rough surfaces, and improved traction on loose terrain.
If you’re seeking a gravel bike that can tackle rough trails, carry gear, and go the distance, the Trek CheckOUT SL 5 Gravel Bike is an excellent option. It combines serious off-road capabilities with the practicality of a gravel bike, making it particularly suitable for bikepackers or riders who need to carry gear, thanks to its mounting options and rugged design.
Features:
- 500 Series OCLV Carbon Frame

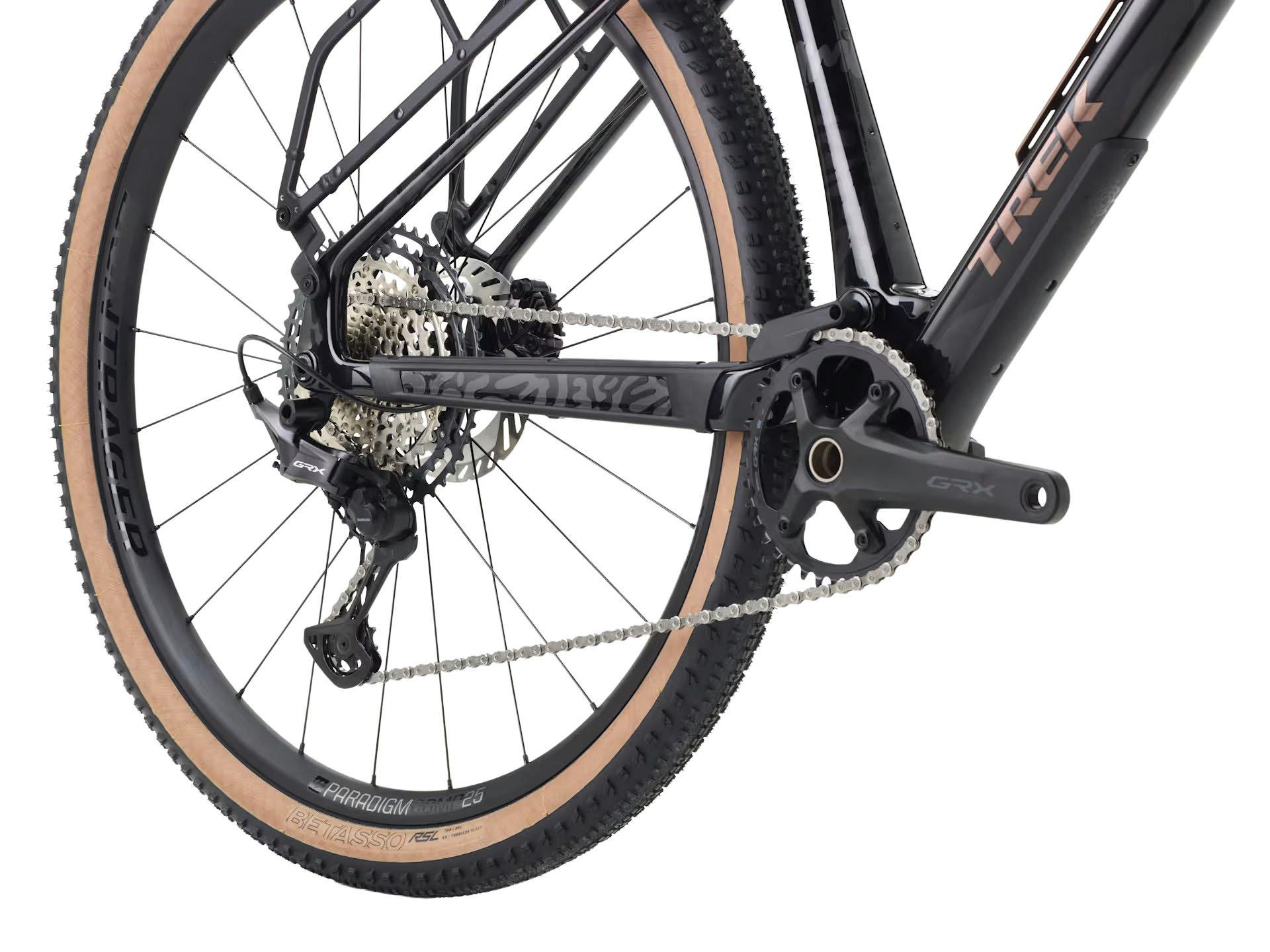

- Shimano GRX, 12-speed Drivetrain
- Bontrager Paradigm Comp 25 Wheels
- 56 mm/2.2″ tyre clearance
Specifications
Specifications
| Chain | Shimano XT M8100, 12-speed | Max. chainring size: 1x: 38T |
| Crank | Size S: Shimano GRX RX610, 38T, 160 mm length, Size M/ML:Shimano GRX RX610, 38T, 170 mm length, Size L/XL: Shimano GRX RX610, 38T, 172.5 mm length |

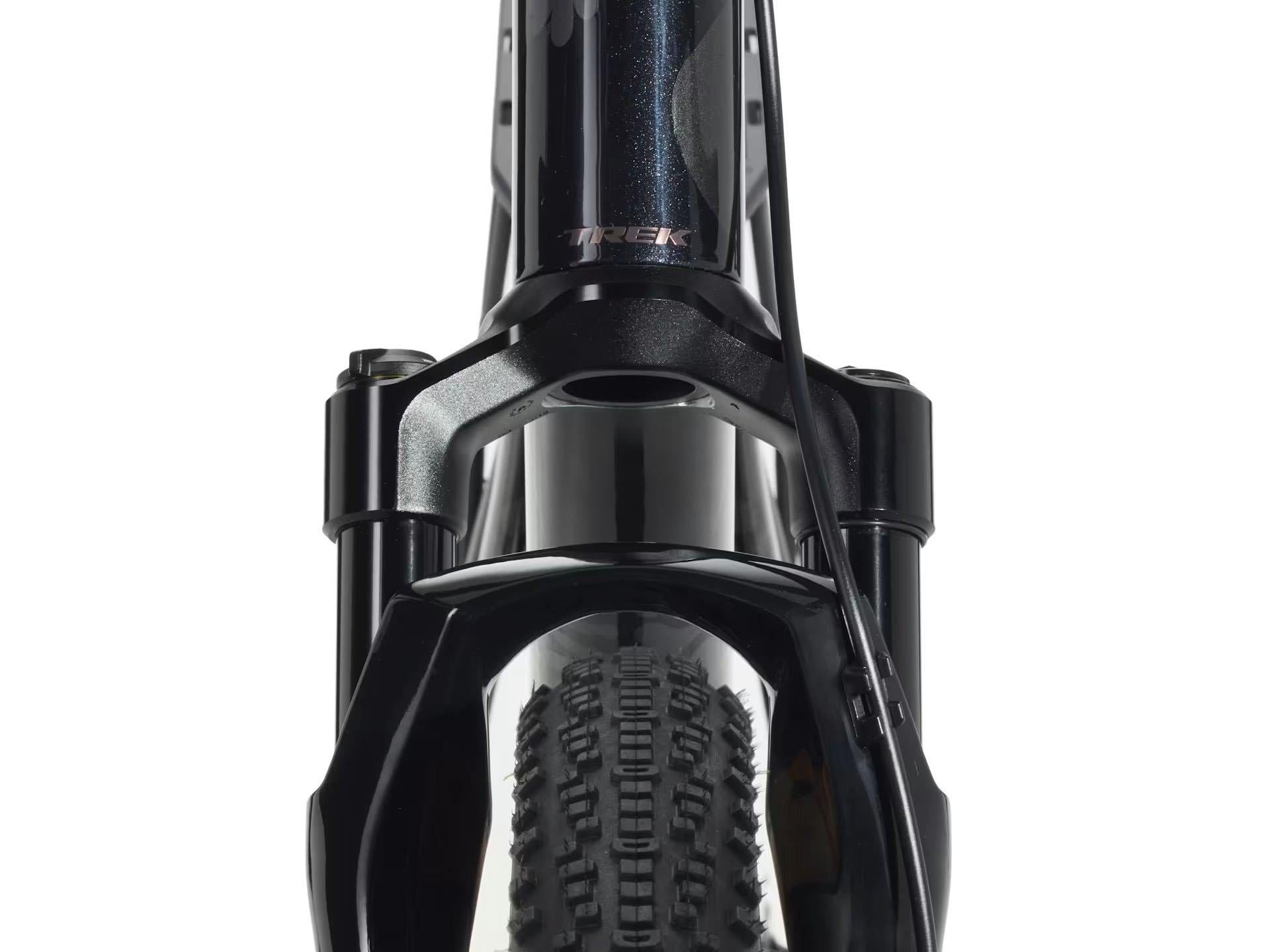

| Fork | RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel |
| Frame | 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel |
| Frame Material | Carbon Fiber |

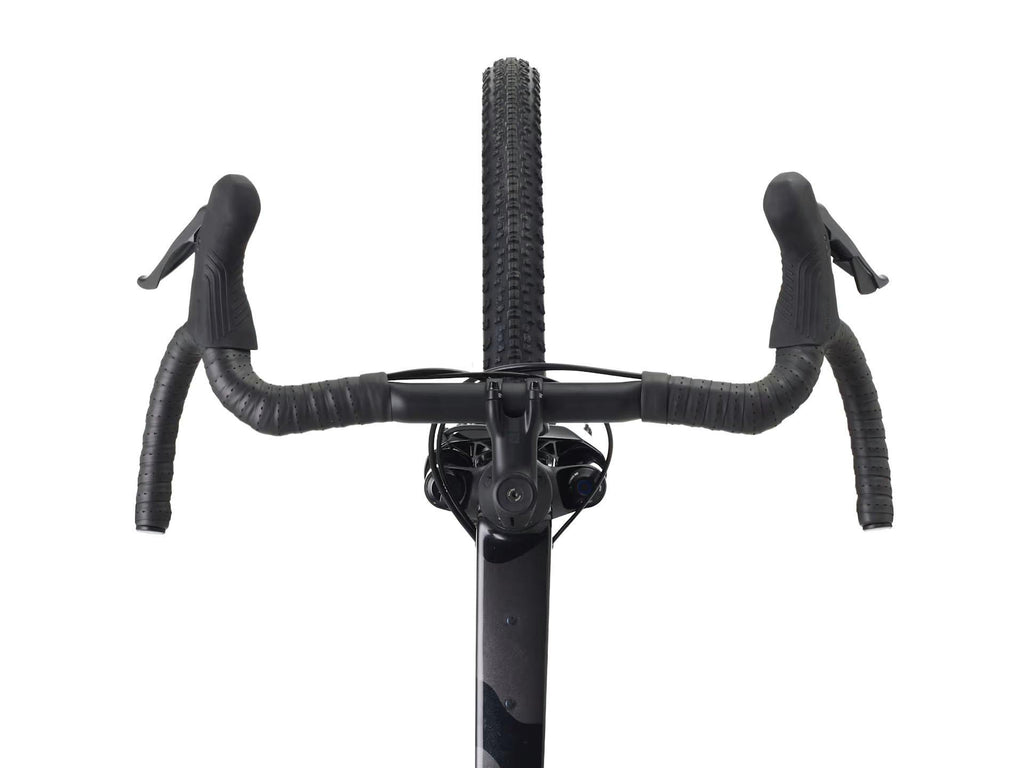

| Handlebars | Size: S Bontrager GR Checkout, 42 cm | Size: M Bontrager GR Checkout, 44 cm | Size: ML/L Bontrager GR Checkout, 46 cm | Size: XL Bontrager GR Checkout, 48 cm | Tape: Bontrager Supertack Perf |
| Pedals | *not included* |
| Rims | Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Stem | Size: S, M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length | Size: ML, L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length | Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Tyres | Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55 mm | Max tyre size 56 mm/2.20" |
| Wheels | Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle | Skewer Rear: Bontrager Switch chamfered thru axle, removable lever |
