Description

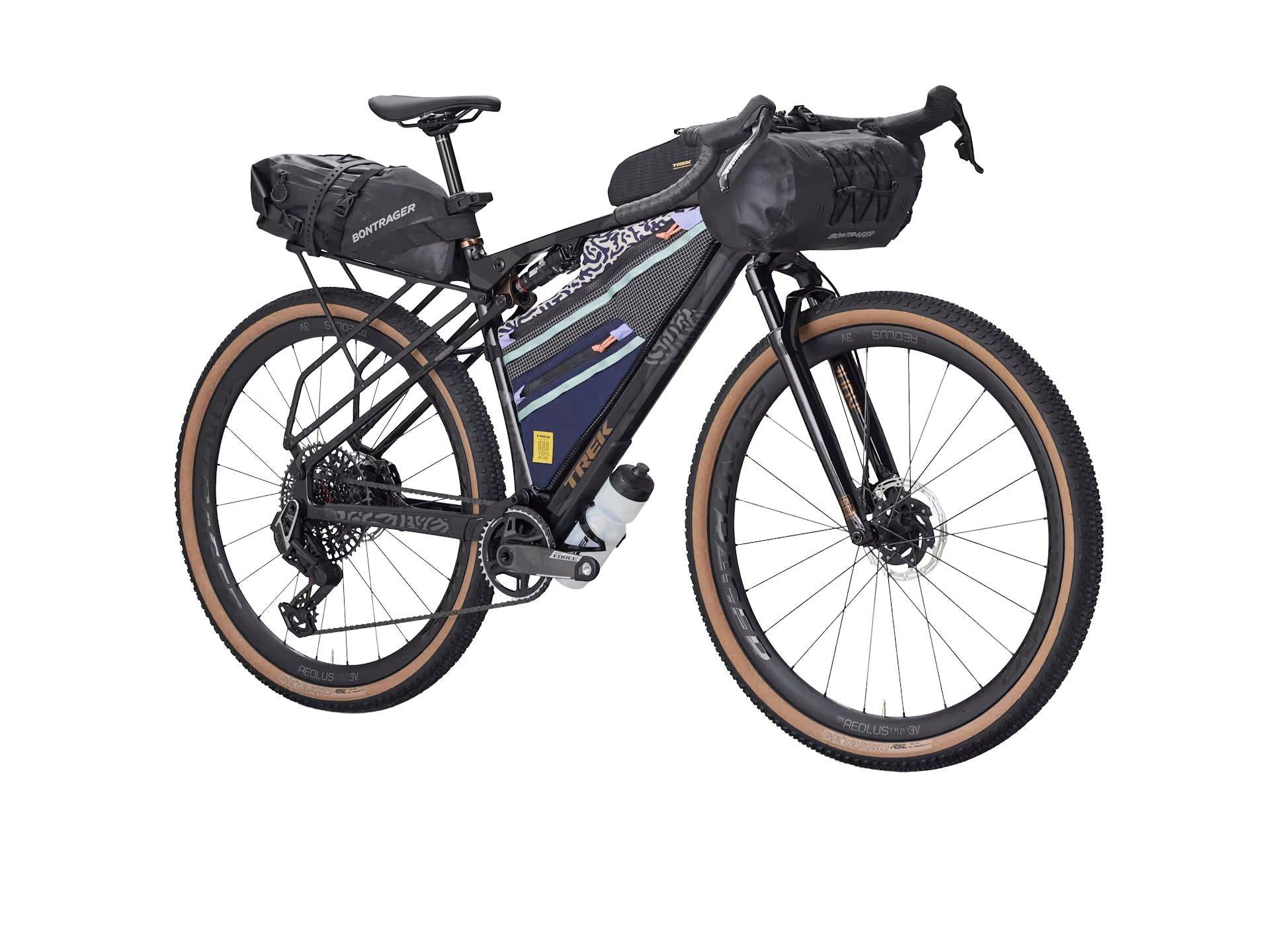

Built for bikepacking, the CheckOUT SL 7 AXS Gravel Bike from Trek offers 18 (Sizes ML and up) frame mounts to store your gear and get going. This bike also boasts an integrated rear rack that functions with the bike's suspension and dropper post, along with Adjustable Multi-Mounts that allow you to position your bottles. The high tyre clearance of 56 mm/2.2″ wide means you can switch out your tyres to suit your needs and wants, and the brand new Gravel Adventure geometry gives you better stability on longer, multi-day and surface rides. The SRAM AXS battery pack supports electronic shifting for quicker and smoother gear changes whilst also providing a cleaner look within the bike frame.
With 55 mm of rear travel and a new 60 mm Rudy XL suspension fork, designed in collaboration with RockShox, the bike is equipped to smooth out bumpy gravel roads and allows you to tackle singletrack trails with greater comfort. The CheckOUT's full-suspension setup has been shown to reduce rider fatigue and enhance comfort and control compared to rigid models. This results in a 7.3% decrease in rider ventilation, a 41.5% reduction in fatiguing vibrational energy, and 23% less steering variation. The new GR CheckOUT gravel drop bar features multiple hand positions for improved comfort and efficiency, no matter where your ride takes you. You can choose the narrow tops for increased speed on smooth gravel or reach for the extra-wide drops for maximum control on rough terrain.
If you’re seeking a gravel bike that can tackle rough trails, carry gear, and go the distance, the Trek CheckOUT SL 7 Gravel Bike is an excellent option.
Features:
- 500 Series OCLV Carbon Frame
- RockShox Rudy XL Ultimate Fork
- SRAM AXS battery pack
- Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55 mm Tyres
- 56 mm/2.2″ tyre clearance
Specifications
Specifications
| Battery Type | SRAM AXS battery pack (with charger) |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Brake Set | Brake rotor: SRAM Paceline X, rounded, CentreLock, 160 mm | Max. brake rotor sizes: 180mm front and rear |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed | Max. chain ring size: 1x: 38T |
| Crank | Sram Force 1 XPLR E1, 38T, DUB wide | Size S: 165mm length | Size M, ML: 170mm length | Size L, XL: 172.5mm length |
| Electric Bike | No |
| Fork | RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel |
| Frame | 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel |
| Frame Material | Carbon Fiber |
| Handlebars | Size: S Bontrager GR Checkout, 42 cm | Size: M Bontrager GR Checkout, 44 cm | Size: ML, L Bontrager GR Checkout, 46 cm | Size: XL Bontrager GR Checkout, 48 cm | Handlebar tape: Bontrager Supertack Perf tape |
| Pedals | ** Pedals not included ** |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
| Seatpost | RockShox Reverb AXS, 100 mm travel, wireless, 31.6 mm, 337 mm length |
| Shifters | SRAM Force AXS E1 |
| Stem | Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree | Size S, M: 60mm length | Size ML, L: 70mm length | Size XL: 80mm length |
| Tyres | Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55 mm | Max tyre size: 56 mm/2.20" (as measured, see manual for details) | Tyre part: Bontrager TLR sealant, 180 ml/6 oz | Rim strip: Bontrager TLR |
| Wheels | FRONT: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle | REAR: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142x12 mm thru axle | Skewer REAR: Bontrager Switch chamfered thru axle, removable lever |
| Wheel Size | 700 |
