Description

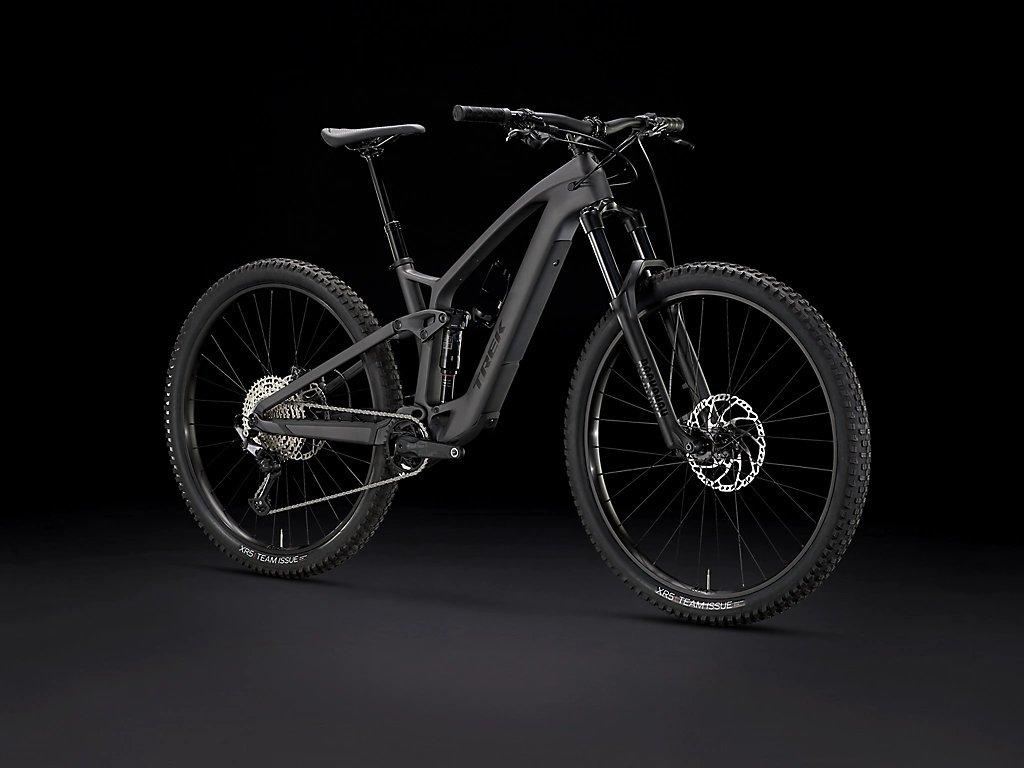

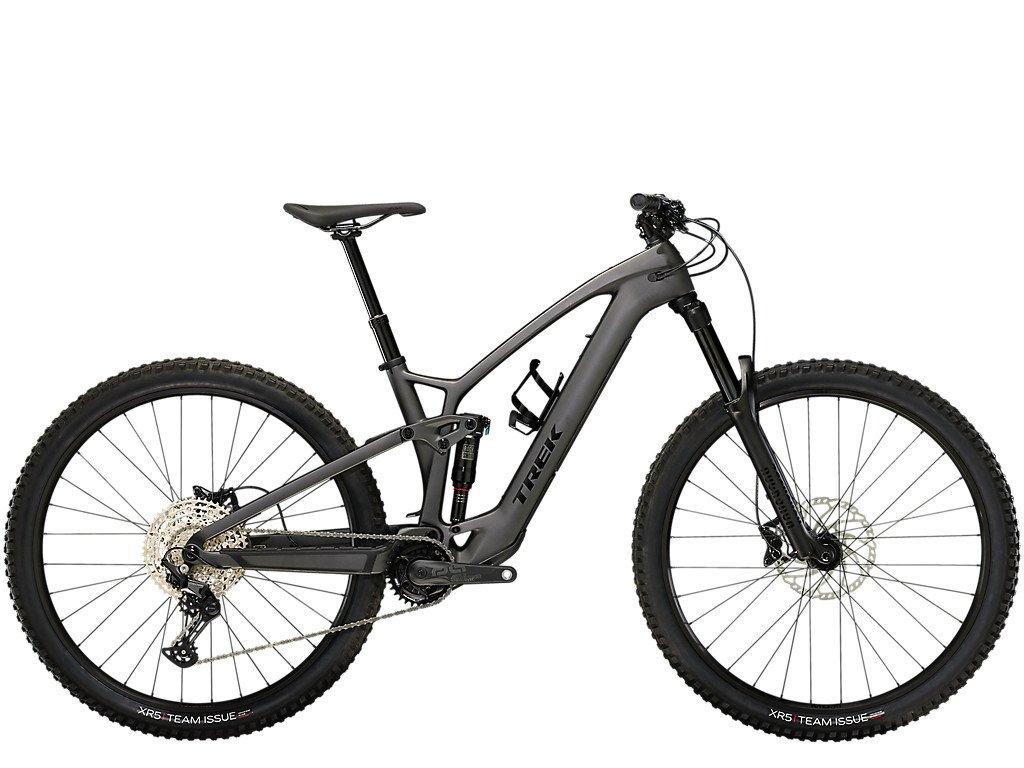

The Fuel EXe heralds Trek's first trail bike entry into the category of lightweight e-bikes. Ideally suited for anyone who wants the benefits of pedal assistance but prefers the looks and ride feel of an analogue bike. At only 19.93kg for the size medium, it's only 4kg heavier than its conventional counterpart. This tiny weight penalty is made possible with the use of a lightweight and low bulk drive system from TQ, housed in a carbon fibre frame. The TQ drive system is so quiet that the motor noise is hardly perceptible, especially when compared to high-powered e-bikes. Despite its small size, the motor still kicks out 250W and 50Nm of torque, for getting you to the top the quickly, so you can enjoy the descent with fresh legs.

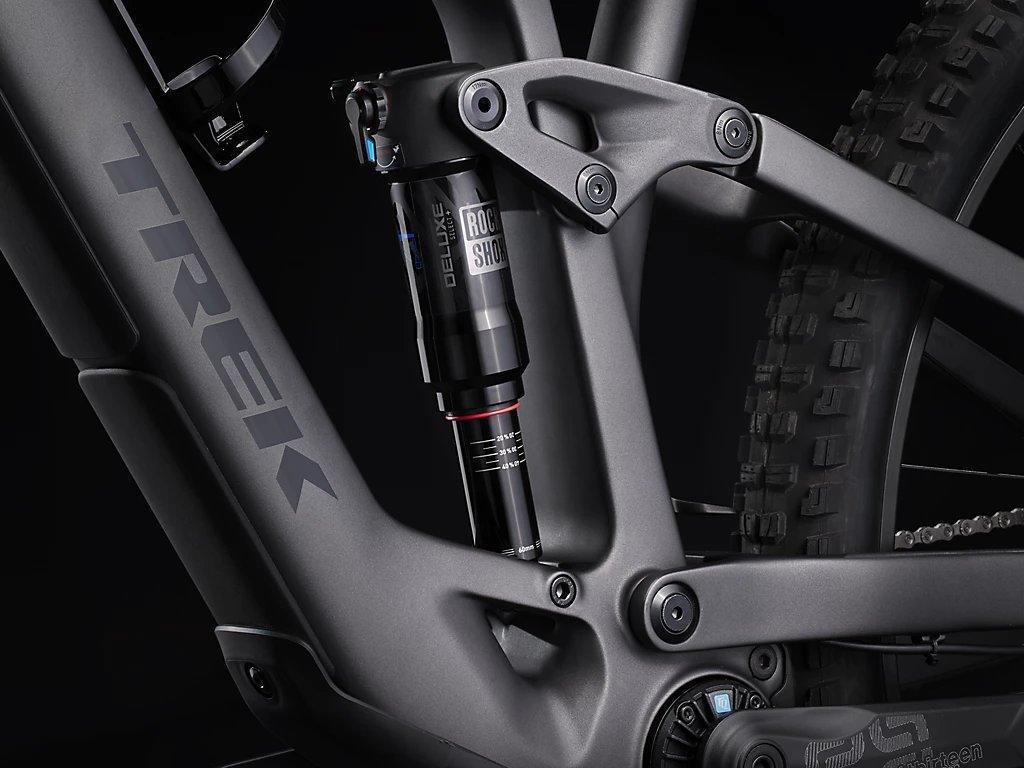

The suspension platform is similar to the standard Fuel EX with 150mm of travel up front and 140mm in the rear. This is delivered by the RockShox 35 Gold RL fork and RockShox Deluxe Select+ RT shock respectively. The drivetrain is Shimano's superb value Deore 1x12 groupset. There's a monstrous 11-51 cassette so you'll have access to more gear range than you're ever likely to need. The Shimano 4 piston brakes leave nothing to be desired in the way of stopping power. Excellent for keeping your speed in check on steep descents.

The frame geometry is bang up-to-date for snappy handling and stability at speed so you can deathgrip through rock gardens with confidence. Trek's active braking pivot suspension design ensures that you get the full benefit of your rear suspension's shock absorption, even under heavy braking load.

If you want an electric mountain bike that balances uphill power with trail bike handling, then look no further than the Fuel EXe 9.5.

Features:

  • Compact, lightweight and powerful drive system delivers quiet pedal assist
  • High-performance RockShox suspension
  • 150/140mm front/rear suspension travel
  • Crisp shifting 1x12 Shimano drivetrain

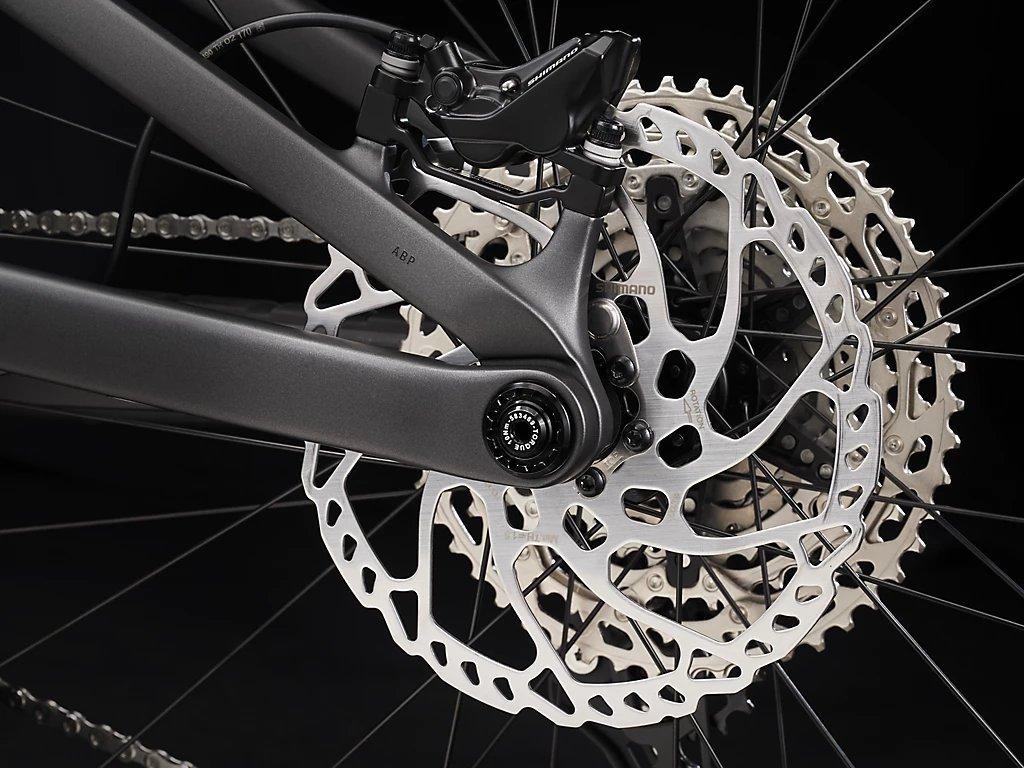

  • Powerful Shimano hydraulic disc brakes
  • Range extender compatibility

Specifications

Battery TQ 360 Wh
Translation missing: en.global.product_spec.bikespecs.brakeset Shimano 4 piston hydraulic
Chain Shimano Deore M6100

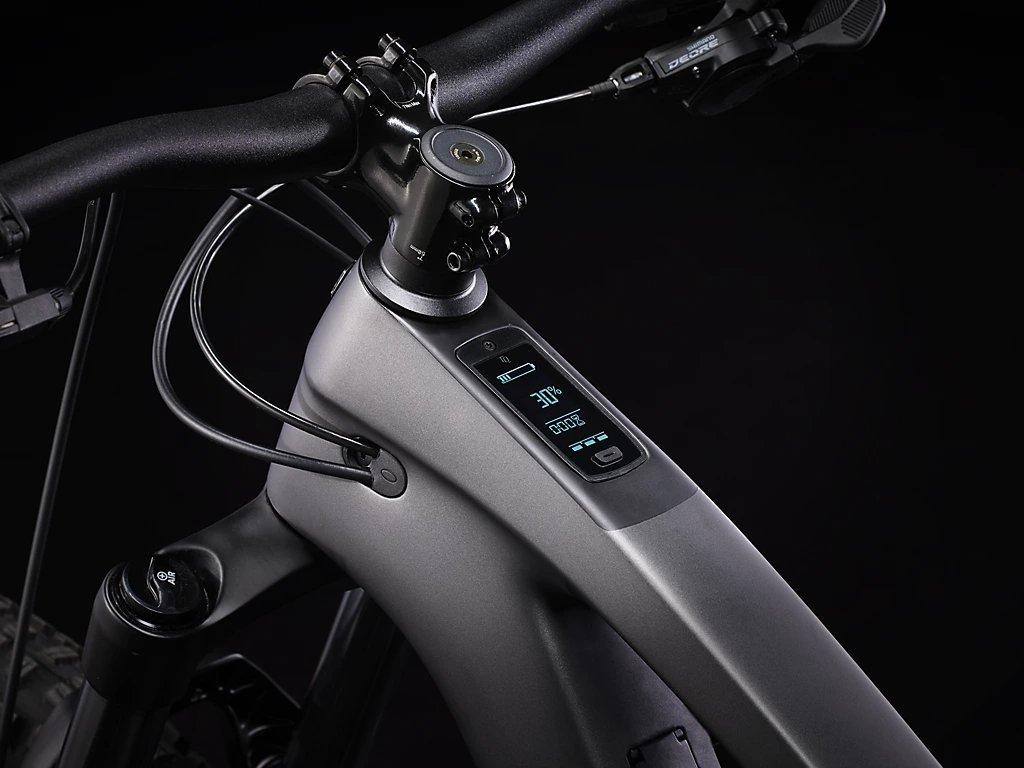

Controller TQ handlebar-mounted
Crank E*thirteen E*spec Plus, 34T, 165 mm length
Electric Assisted Speed Limit 15.5 MPH / 25 KPH
Electric Bike Yes
Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

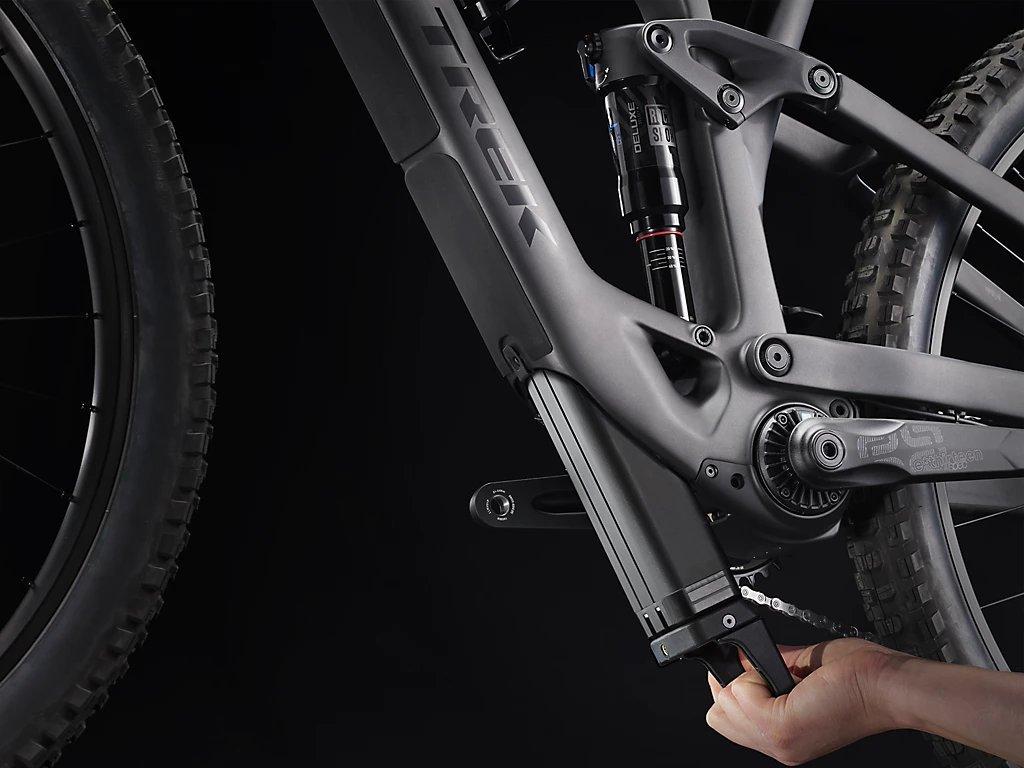

Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Frame Material Carbon Fiber
Grips Bontrager XR Trail Comp, nylon lock-on
Handlebars Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width

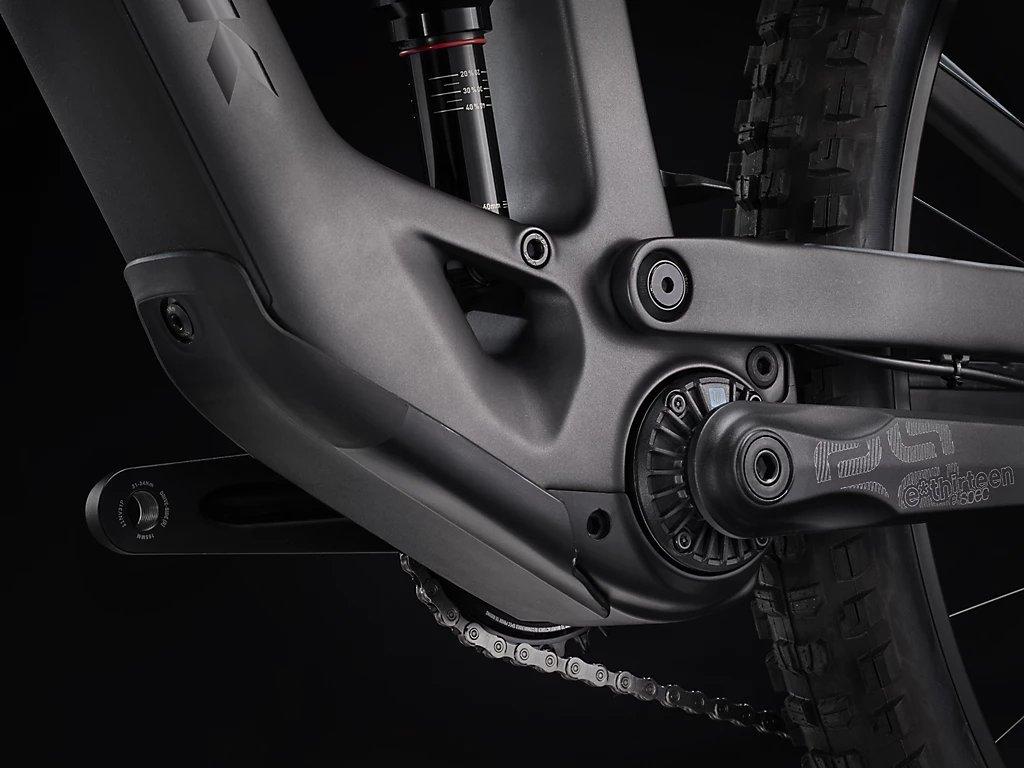

Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Saddle Bontrager Arvada, steel rails, 138 mm width
Shifters Shimano Deore M6100, 12-speed
Stem Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Tyres Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
