Description

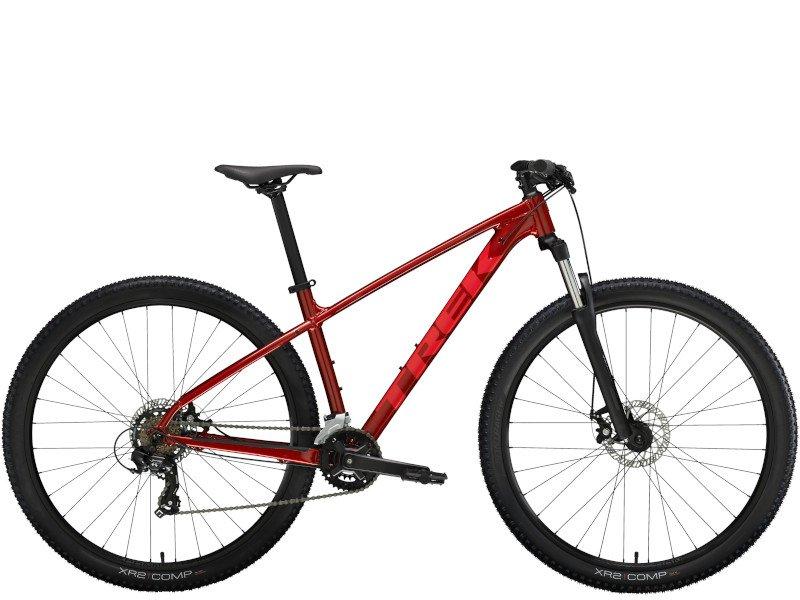

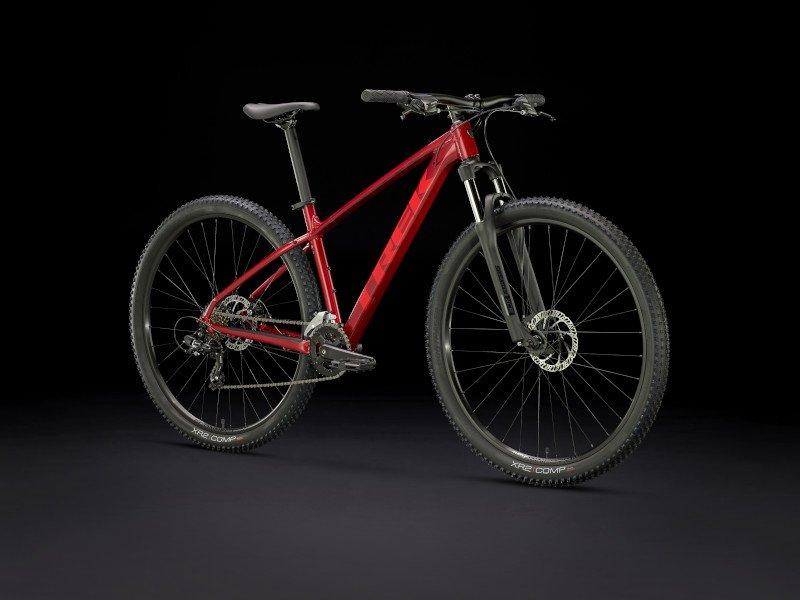

The Marlin 4 is the perfect entry-level mountain bike, ready to take you from scenic rail trails to challenging singletrack adventures. Designed for riders who need a bike that can handle rugged terrain while doubling as a tough commuter, it features Bontrager XR2 Comp tyres for traction and versatility. Equipped with disc brakes, front suspension, a 14-speed Shimano drivetrain, and mounts for racks and mudguards, it's an excellent choice for trail enthusiasts and campus commuters alike.
Constructed from Alpha Silver Aluminum, the sleek frame offers strength without added weight. Tackle bumps and rough terrain with the SR Suntour XCE 28 suspension fork, offering up to 100mm of travel for a more comfortable ride. Whether you're hitting the trails or cruising through your daily commute, this entry-level mountain bike is built to handle it all with ease. With its rugged build and thoughtful design, the Trek Marlin 4 Gen 2 is the ultimate companion for beginners and recreational riders seeking a dependable bike.
Features:
- Constructed with Alpha Silver Aluminum: durable and lightweight
- Shorter frame sizes (XS and S) have short-reach brake levers for riders with smallers hands to brake confidently
- XS and S sizes have a curved top tube and lower standover height to make it easier for smaller riders to mount and dismount

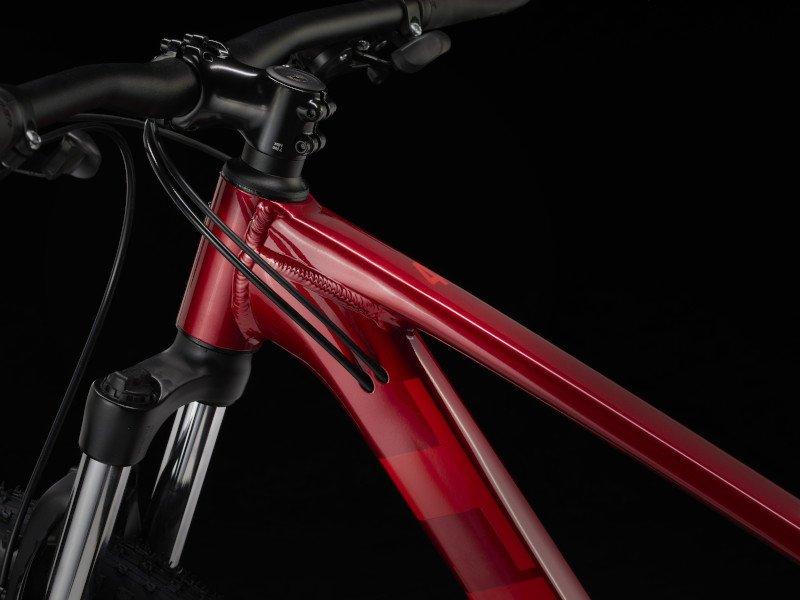

- Internal cable routing enhances the bike's sleek appearance and protects cables from external elements
- SR Suntour XCE 28 coil-spring fork

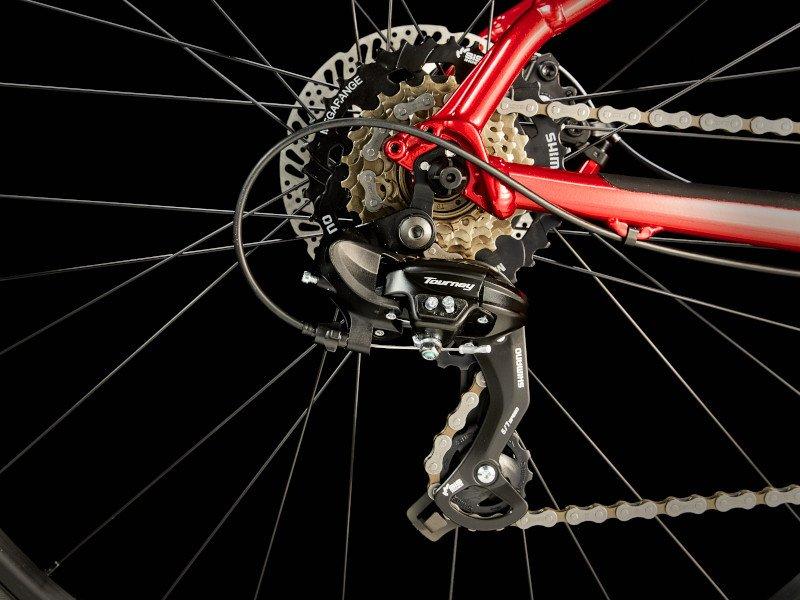

- 3x7-speed Shimano Tourney drivetrain

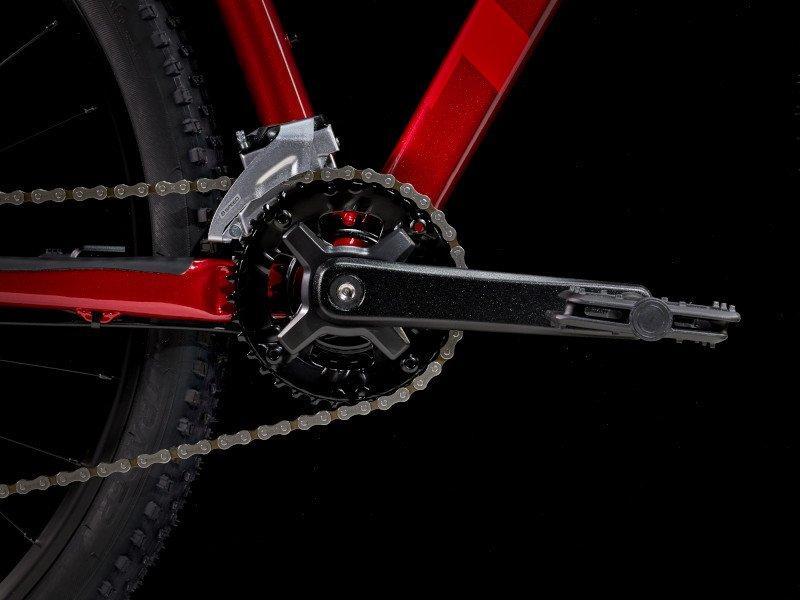

- The crankset includes 42/34/24 chainrings, paired with a 14-28 tooth cassette
- Tektro MD-M280 mechanical disc brakes

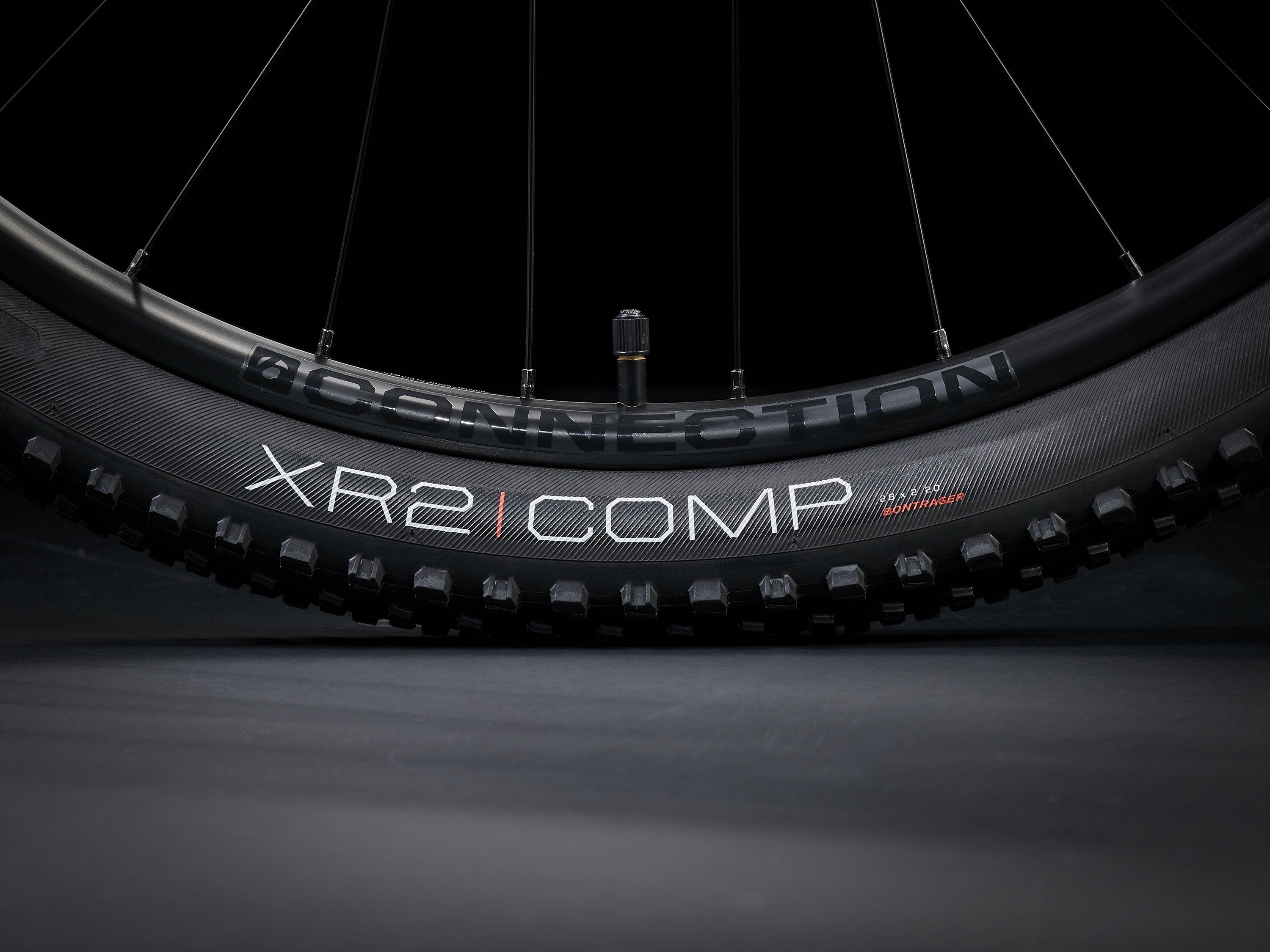

- Fitted with Bontrager XR2 Comp tires (27.5x2.20" for smaller sizes and 29x2.20" for larger sizes)
- Rack and mudguard mounts make it easy to accessorise - double up as a rugged commuter
- Smooth ride
Specifications:
- M - 14.60 kg / 32.19 lb
Specifications
Specifications
| Chain | KMC Z7, 7-speed |
| Crank | ProWheel TM-CY10, 36/22 | SIZE XS, S, M: 170mm length | SIZE ML, L, XL, XXL: 175mm length |
| Fork | SIZE XS: SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel | SIZE S: SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel | SIZE M, ML, L, XL, XXL: SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel | Max. compatible fork travel: 100 mm (XS and S: 490 mm axle-to-crown, M and up: 509 mm axle-to-crown) |
| Frame | SIZE XS, S: Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR | SIZE M, ML, L, XL, XXL: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
| Frame Material | Aluminium |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Handlebars | Bontrager Alloy 31.8mm | SIZE XS, S: 5mm rise, 690mm width | SIZE M, ML, L, XL, XXL: 15mm rise, 750mm width |
| Headset | Semi-integrated, 1-1/8" |
| Hubs | FRONT: Formula DC-20, alloy, 6-bolt, 5x100 mm QR | REAR: Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR | Skewer REAR: 152x5 mm QR |
| Pedals | VP-536 nylon platform |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Shifters | Shimano EF500, 2-speed | Shimano Altus EF500, 7-speed |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree | SIZE XS, S: 50mm length | SIZE M: 60mm length | SIZE ML, L: 70mm length | SIZE XL, XXL: 80mm length |
| Tyres | SIZE XS, S: Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" | SIZE M, ML, L, XL, XXL: Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" | Max. tyre size: Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer |
