Description

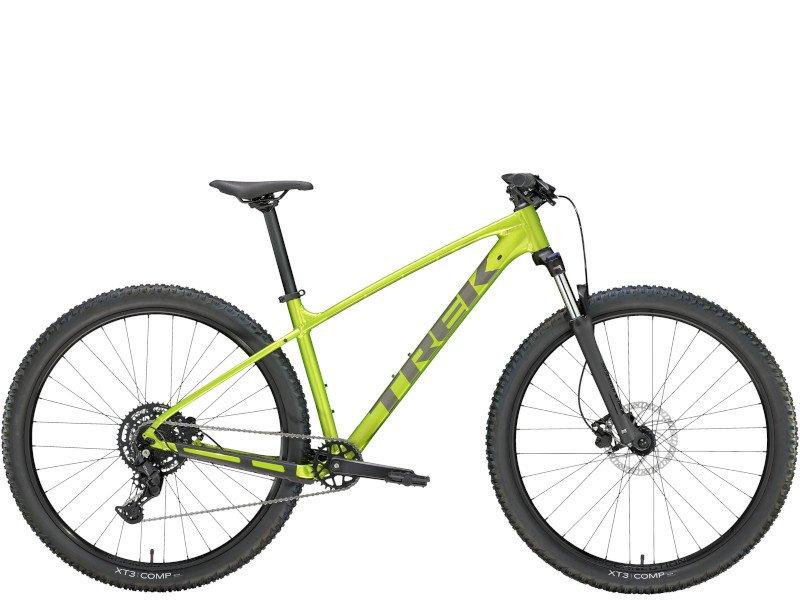

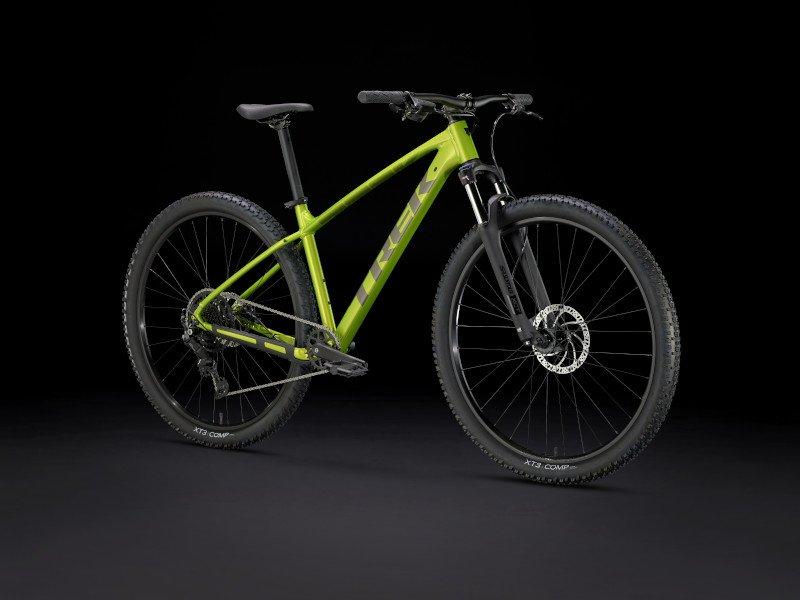

Whether you are new to the trails or looking for a rugged commuter that also doubles as a mountain bike, the Marlin 5 Gen 3 is the ideal hardtail mountain bike. With its lightweight aluminium frame and internal routing, it has high trail compatibility thanks to its big tyre clearance and slack. Trek have updated the 9-speed Shimano CUES drivetrain to provide a wide range of gears, so that you can set the right one for wherever you are, on the trails or riding on the roads and the bike’s hydraulic disk brakes and terrain-smoothing suspension fork keep your journey safe and smooth.

Marlin models in sizes XXS and XS are fitted with a curved top tube and lower stand-over height, making it easier for younger or smaller riders to mount and dismount; it’s the ideal choice for a new rider, a young rider or simply a rider looking for the best performance for brilliant value.

Features:

  • Serious trail capability with big tyre clearance and slack
  • Rack and mudguards
  • Upgraded 9-speed Shimano CUES drivetrain
  • Hydraulic disk brakes
  • ThruSkew system - safer, simpler and stronger
  • Internal routing
  • Lightweight aluminum frame
  • Marlin models in size XXS and XS have a curved top tube and lower standover height that makes it easier for younger or smaller riders to mount and dismount
  • Weight limit: this bike has a maximum total weight limit (combined weight of the bicycle, rider and cargo) is 136kg / 300lbs

Specifications

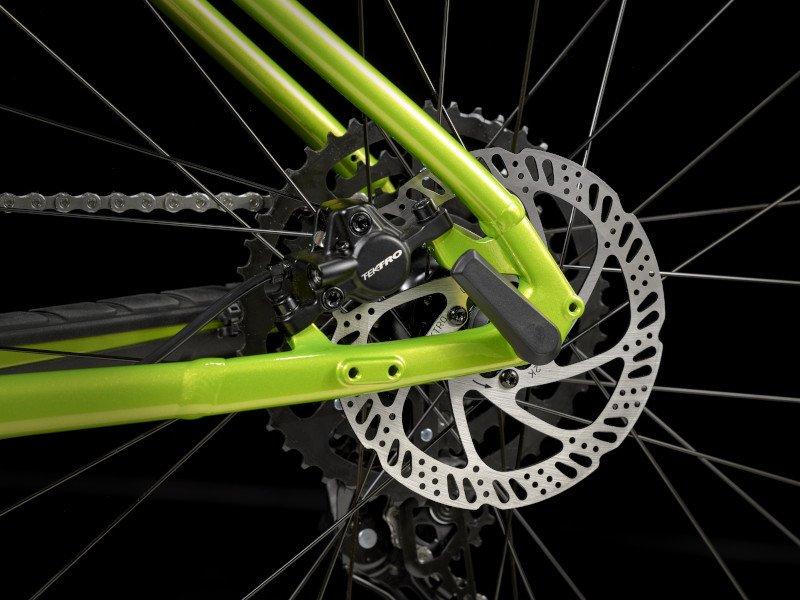

Translation missing: en.global.product_spec.bikespecs.brakeset XS, S: Tektro HD-M276 hydraulic disc, short reach | M, ML, XL: Tektro HD-M275 hydraulic disc

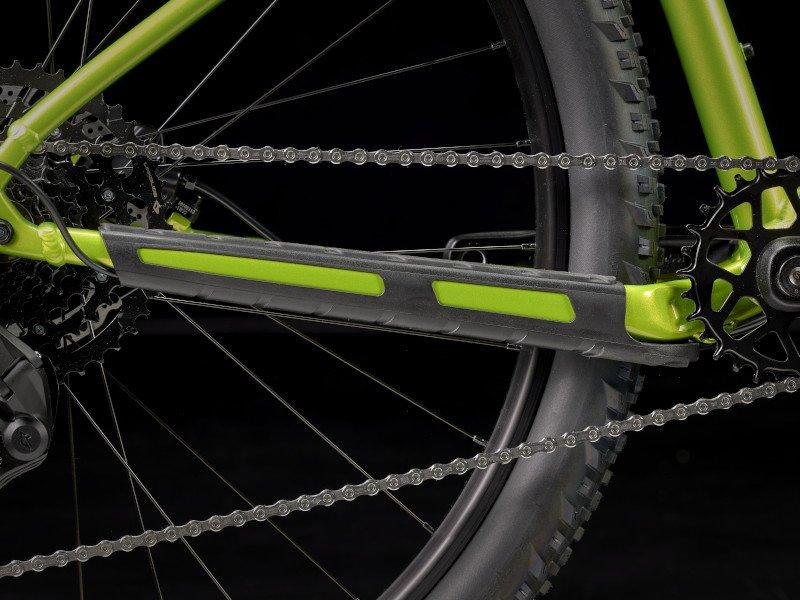

Chain Shimano LG500

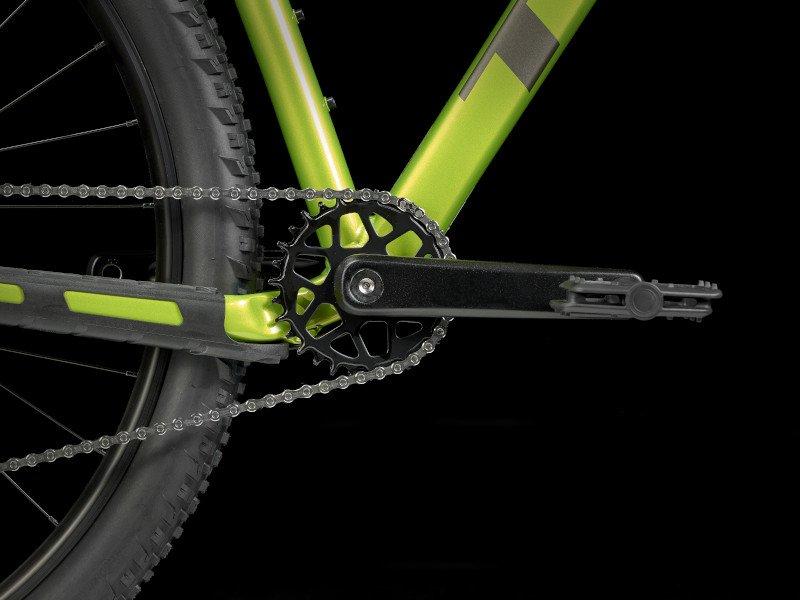

Crank XS: Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length | S, M, ML: Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length | XL: Prowheel C10Y-NW, 30T steel narrow-wide ring, 175 mm length

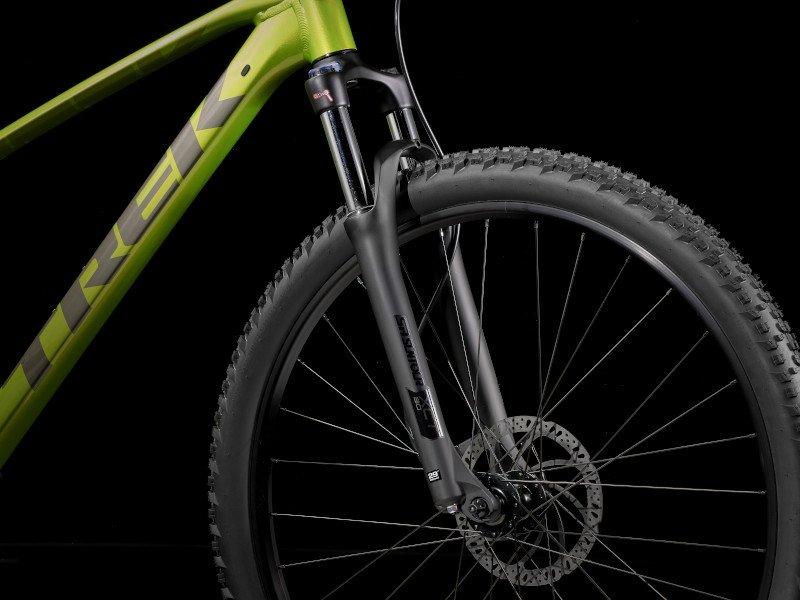

Fork XS: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel | S: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel | M, ML, XL: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

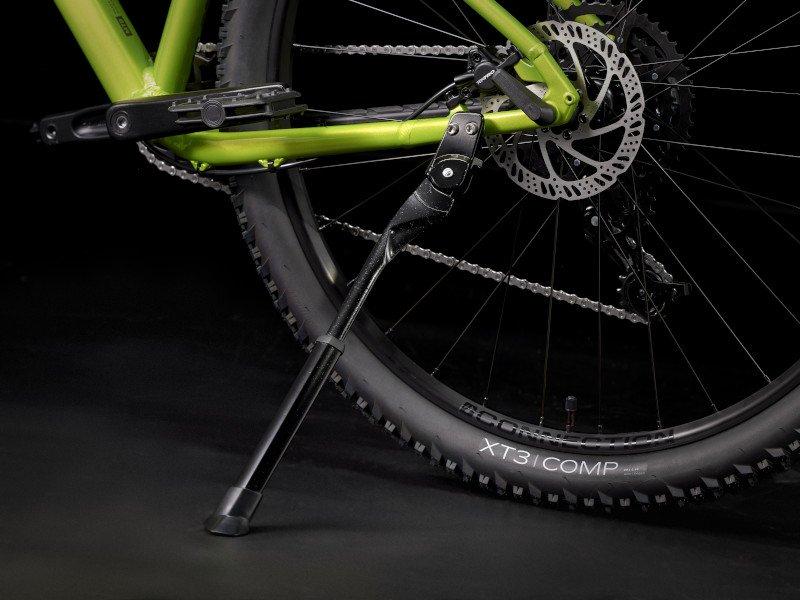

Frame XS: Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew | S, M, ML, XL: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Grips XS, S: Bontrager Comp, 31.8 mm, 7-degree, 35 mm length | M, ML: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length | XL: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Handlebars XS: Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width | S: Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width | M, ML, XL: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Headset Semi-integrated, 1-1/8"
Hubs Front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR | Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Pedals VP-536 nylon platform
Rims Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Shifters Shimano U4000, 9-speed

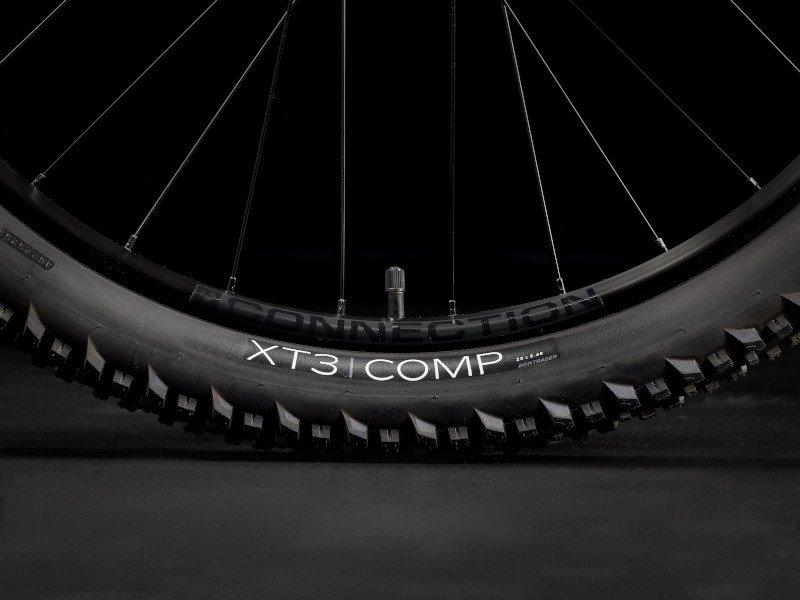

Tyres XS, S: Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" | M, ML, XL: Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"
