Description

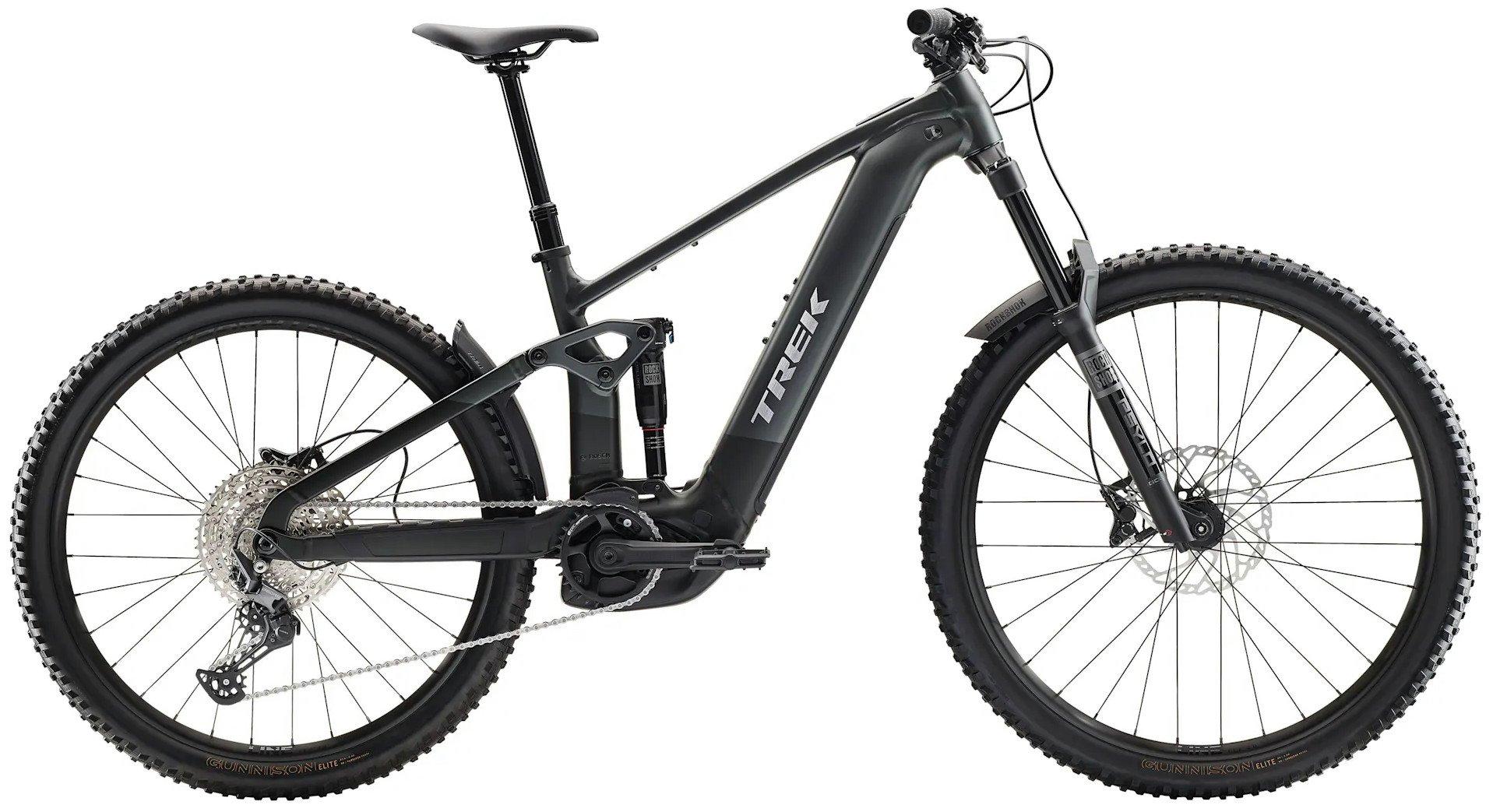

The all-new Rail+ 5 Gen 5 from Trek is a great value, long-travel e-MTB for shredding the trails. Kitted out with a Bosch Performance CX system and 800 Wh Removable Integrated Battery, you will be powered up steep climbs, kept cool for the descents, and can explore for longer. It is engineered with an Alpha Platinum Aluminium frame and RockShox 35 Gold RL fork with a DebonAir spring that delivers 160 mm of front and rear travel, making the Rail+ super capable in the rough and rowdy. You can tweak your geometry and suspension leverage rate, allowing you to customise for how and where you ride. The Rail+ 5 Gen 5 from Trek is the ideal choice if you are looking for a sturdy full-power e-MTB that doesn't back down from anything.
Features:
- Alpha Platinum Aluminium frame
- Bosch Performance CX system
- 800 Wh Removable Integrated Battery 2.0
- 160 mm RockShox 35 Gold RL fork with DebonAir spring, Motion Control damper and a lockout
- RockShox Deluxe Select+ RT shock
- Shimano Deore 12-speed drivetrain
- Tubeless Ready Bontrager Line wheels
- 4-piston hydraulic disc brakes
Specifications
Specifications
| Controller | Bosch System Controller BRC3100, smart system |
| Fork | RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel |
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
| Frame Material | Aluminium |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Handlebars | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Hubs | Front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle | Rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
| Rims | Bontrager TLR |
| Saddle | Bontrager Verse P3, steel rails |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Tyres | Front: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" | Rear: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
