Description

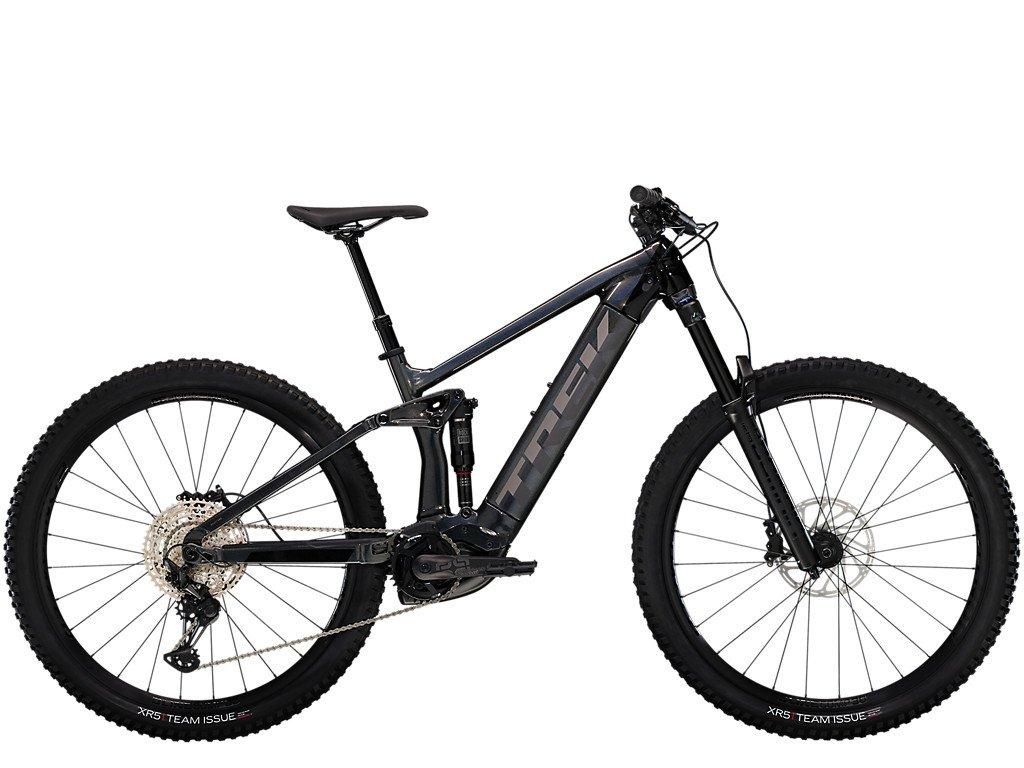

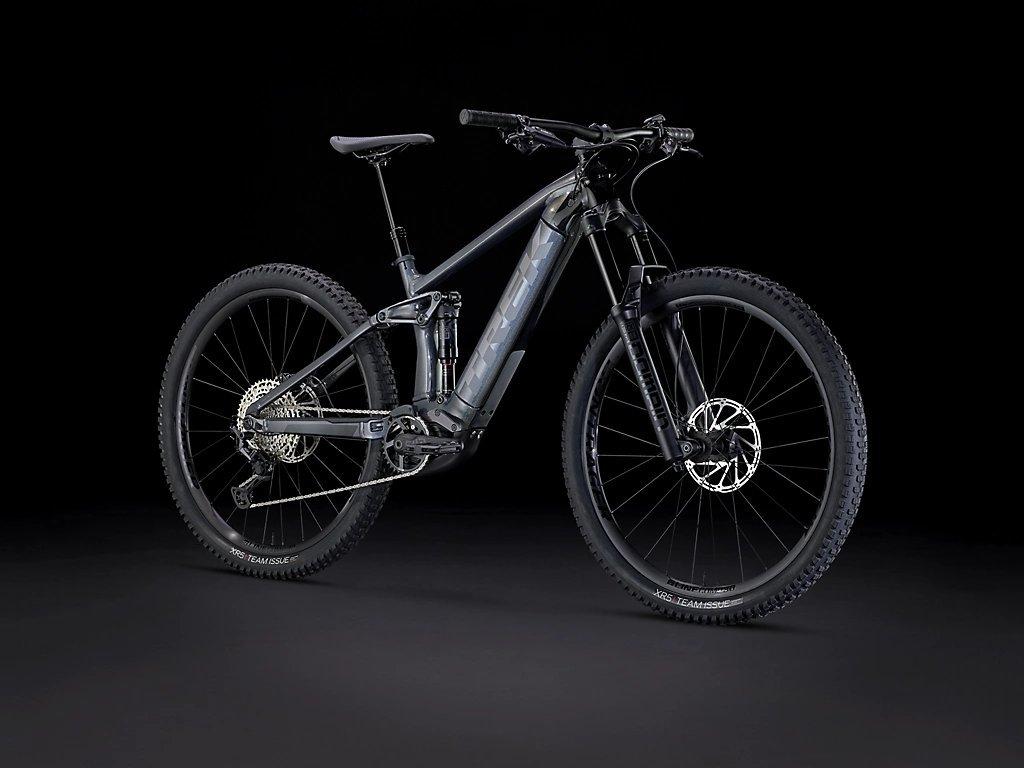

The Rail is a long-travel electric mountain bike built for fast descents and gnarly terrain. It features the same high-end trail tech and character as analogue Trek bikes, just supercharged. Think of the Rail as a Slash/Remedy hybrid with a built-in shuttle. The Bosch drive unit will have you doing three times your normal lap at the local trail centre and, as we all know, more riding = more fun.

The Rail 7 Deore/XT is the top spec alloy Rail. Its aluminium frame delivers 150mm of rear suspension travel and holds a 625 Wh battery for long days lapping the trails or adventuring in the mountains. A 160 mm RockShox Domain RC suspension fork and SRAM 4-piston hydraulic brakes keep you in control when descending. The powerful Bosch Performance Line CX (250 W, 85 Nm) motor and smooth-shifting 1x12 Shimano Deore/XT drivetrain will get you to the top of the hill in record time. The bike has a neat handlebar remote that allows you to cycle through the different assistance modes. All of the Bosch electronics are part of their new Smart System that allows you to update and customise your bike from the Bosch app. You can use it for activity tracking, diagnostics and range calculation too. Trek finishes the spec off with a dropper post, and Bontrager Line Comp 29er wheels that are already completely tubeless-ready, including sealant.

This bike is ready for big mountain terrain, so if you want to ride further and harder, you want a Trek Rail.

Features:

  • Alpha Platinum Aluminium frame with 150mm of suspension travel
  • 160mm RockShox RockShox Domain RC suspension fork

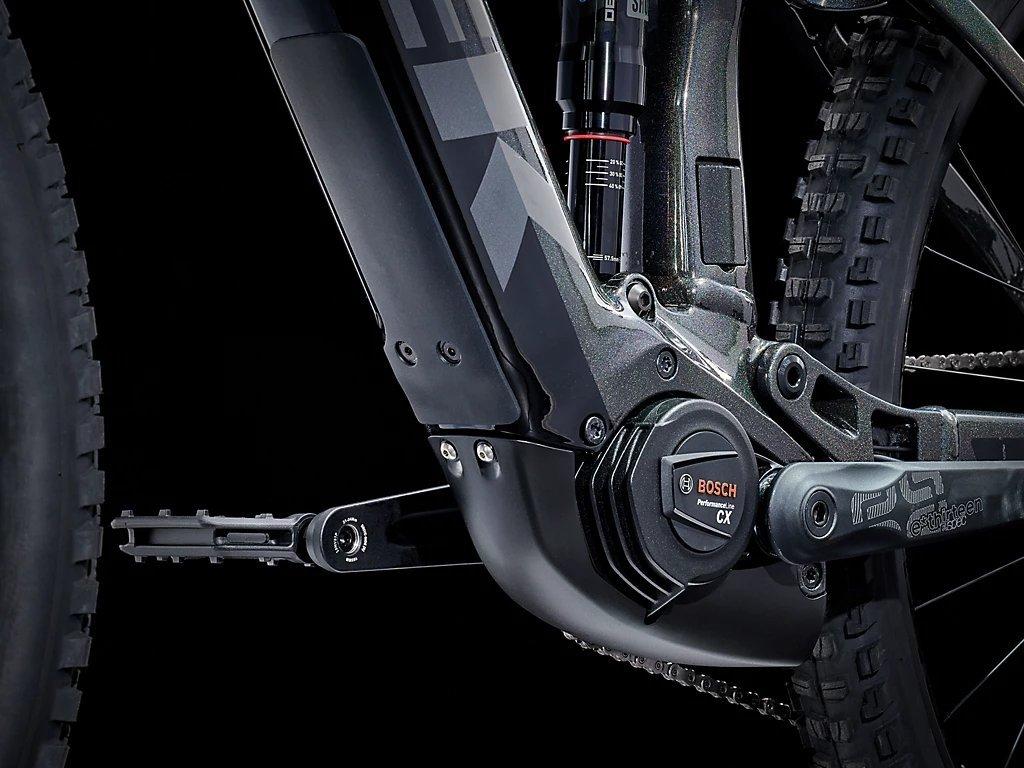

  • Bosch Performance Line CX motor (250 W, 85 Nm)
  • Active Braking Pivot (ABP) for consistent suspension performance under braking

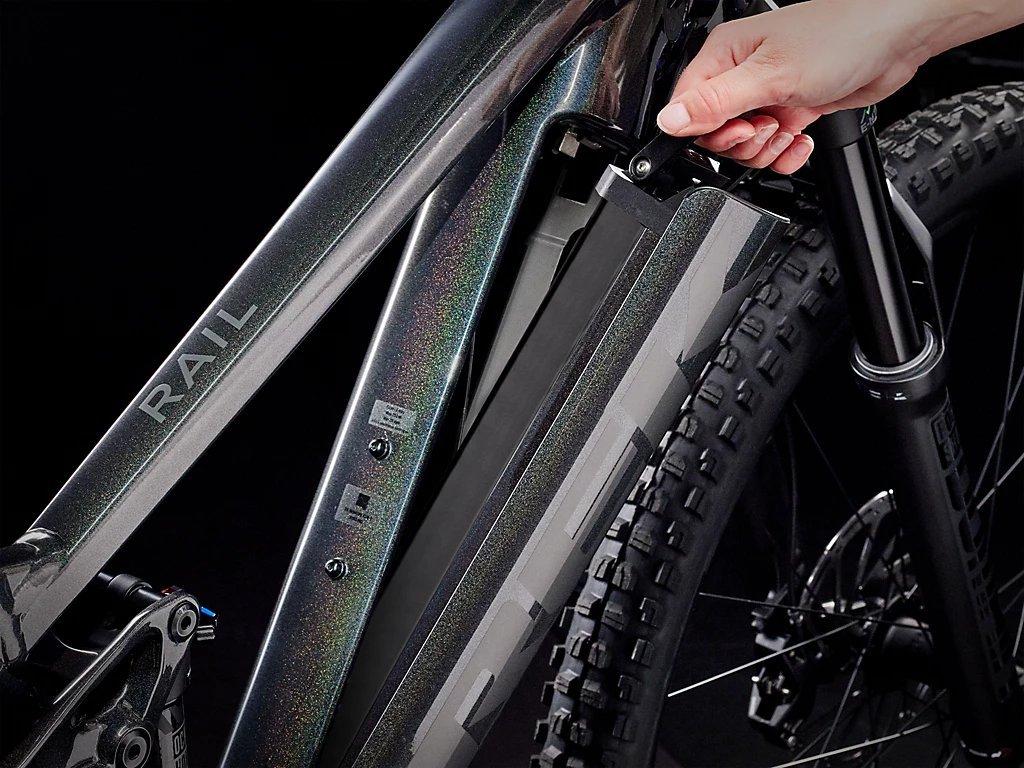

  • Removable Integrated Battery (RIB) for security and easy charging

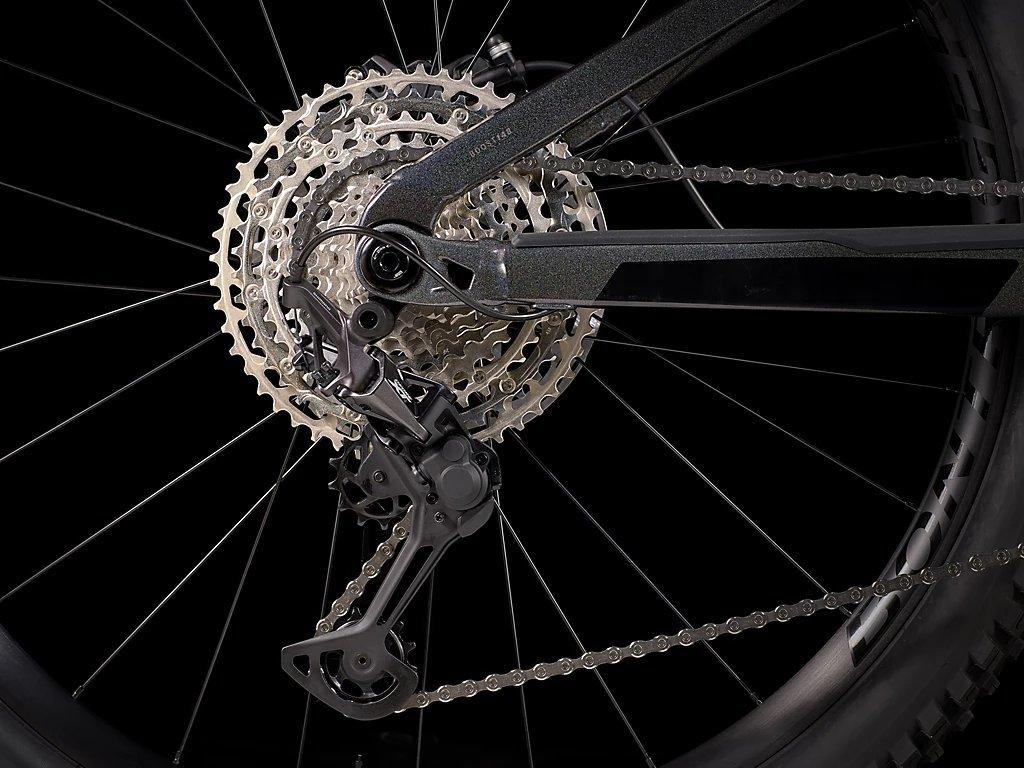

  • Shimano Deore/XT 1x12 speed drivetrain
  • SRAM Code R 4-piston hydraulic disc brakes

Specifications

Chain Shimano Deore M6100

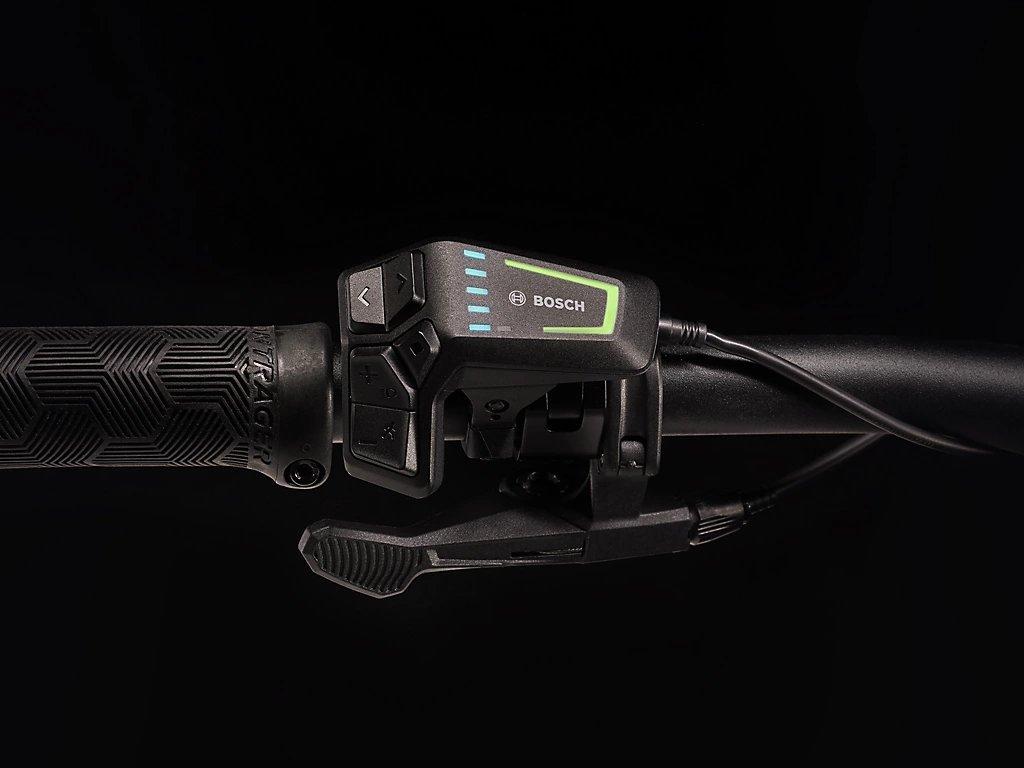

Controller Bosch LED remote, smart system
Crank E*thirteen E*spec Plus, 165 mm length, 34 tooth
Fork RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Frame Material Aluminium
Grips Bontrager XR Trail Comp, nylon lock-on
Handlebars Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Hubs Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Pedals VP-536 nylon platform
Rims Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve | Rim strip: Bontrager TLR
Saddle Bontrager Arvada, steel rails, 138 mm width
Shifters Shimano SLX M7100, 12-speed
Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Tyres Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" | Tyre part: Bontrager TLR sealant, 180 ml/6 oz | Max. tyre size: Frame: 29x2.60", Fork: See manufacturer
