Description

The all-new Rail+ 8 is a super capable alloy Enduro e-bike for big adventures. Kitted out with a Bosch Performance Line CX system and  800 Wh Removable Integrated Battery 2.0, you will be powered up steep climbs, kept cool for the descents and can explore for longer. It is engineered with an Alpha Platinum Aluminium frame and RockShox ZEB Select fork with a DebonAir spring that delivers 160mm of front and rear travel, making the Rail+ 8 a powerhouse in the rough and rowdy. The mixed wheel set-up means you've got the best of both worlds: a 29" front wheel for riding stable and steady over technical singletracks and a 27.5" rear wheel to ensure you maintain nimble agility in turns and corners.

Experience the smooth-sailing performance from the Shimano XT drivetrain and efficient stopping power with SRAM's DB 8 4-piston brakes. You can tweak your geometry and suspension leverage rate, allowing you to customise for how and where you ride. The Rail+ 8 Gen 5 from Trek is the ideal choice if you are looking for an enduro e-MTB that is up for hammering down gnarly rides and never backs out.

Features:

  • Bosch Performance Line CX motor offers up to 100Nm with the Bosch eBike Flow app
  • Removable Integrated Battery (RIB 2.0) makes removal for charging and travelling more convenient
  • Bosch Mini Remote: easily change level assist, activate Walk mode or turn on additional lights right on the handlebar
  • Mixed wheel size: 29" front wheel for stability over the rough and 27.5" in the rear for maneouvrability
  • Bosch System Controller: gives overview of assist modes and battery level, integrated into the top tube
  • Active Braking Pivot allows engineers to tune how the suspension reacts to acceleration and braking forces independently
  • Shimano XT: reliable shifting, superior braking and intuitive maintenance makes this groupset the most trusted by mountain bikers
  • Tubeless Ready rims and tyres give better traction, fewer flats and less weight
  • Integrated speed sensor is mounted on the chainstay and is protected
  • Oversized 34.9mm dropper post gives more support and strength for longer travel droppers
  • Rapid Drive 108 rear hub: nearly instant acceleration with smooth and immediate power blasts
  • Mino Link adjustable geometry: fine tune the head tube angel by 1/2 degrees and bottom bracket height by up to 10mm with the simple turn of a nut
  • Fender: Trek 27.5" custom fender
  • Weight (size M)25.08kg / 55.3lbs (with TLR sealant, no tubes)
  • This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)

Notice:

  • Please note: Trek reserve the right to make changes to the product information and specifications provided and due to supply chain issues, compatible parts may be substituted at any time without notice

Specifications

Battery Bosch PowerTube 800 Wh, smart system | Charger: Bosch standard 4A, 230V, smart system
Translation missing: en.global.product_spec.bikespecs.brakeset SRAM DB 8 4-piston hydraulic disc | Brake rotor: SRAM CentreLine, 6-bolt, round-edge, 200 mm | Rotor size: Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
Brake Set SRAM DB 8 4-piston hydraulic disc | Brake rotor: SRAM CentreLine, 6-bolt, round-edge, 200 mm | Rotor size: Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed | Max. chainring size: 1x: 36T
Controller Bosch System Controller BRC3100, smart system
Crank E*thirteen E*spec Plus, 160 mm length
Electric Assisted Speed Limit 15.5 MPH / 25 KPH
Electric Bike Yes
Fork RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel
Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
Frame Material Aluminium
Grips Bontrager XR Trail Comp, nylon lock-on
Handlebars Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Motor Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Pedals ** Pedals nots included **
Rear Derailleur Shimano XT M8100, long cage
Rear Shock RockShox Super Deluxe Select RT, 205mm x 65mm
Rims Rim strip: Bontrager TLR
Saddle Bontrager Verse P3, steel rails
Seatpost Size S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length | Size M: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length | Size L, XL: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Shifters Shimano SLX M7100, 12-speed
Stem Bontrager Elite, 35 mm, 0-degree, 45 mm length
Tyres FRONT (size S, front and rear): Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" | REAR: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" | Tyre part: Bontrager TLR sealant, 180 ml/6 oz | Max. tyre size: 27.5x2.60", Fork: See manufacturer
Wheels FRONT: size S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"; size M, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" | REAR: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5" | REAR skewer: Bontrager Switch thru-axle, removable lever

Delivery

Bike Delivery (£24.99)

Delivered within 5-10 working days. This service is for orders with a large item which cannot be shipped with our regular carriers. Delivered by specialist courier who will provide updates. Please provide an accurate phone number and email address.

Click and Collect

Pay online now and the items will be delivered to store for you to collect. Orders will be kept in store for 14 days before being cancelled.
You will be notified when your order is ready to collect. Please do not travel to store until you have been notified.

Returns

Returning orders to us is easy. Whatever your reason, we offer a refund or exchange within 60 days of delivery or collection.

Find out more

Complete the look

Related

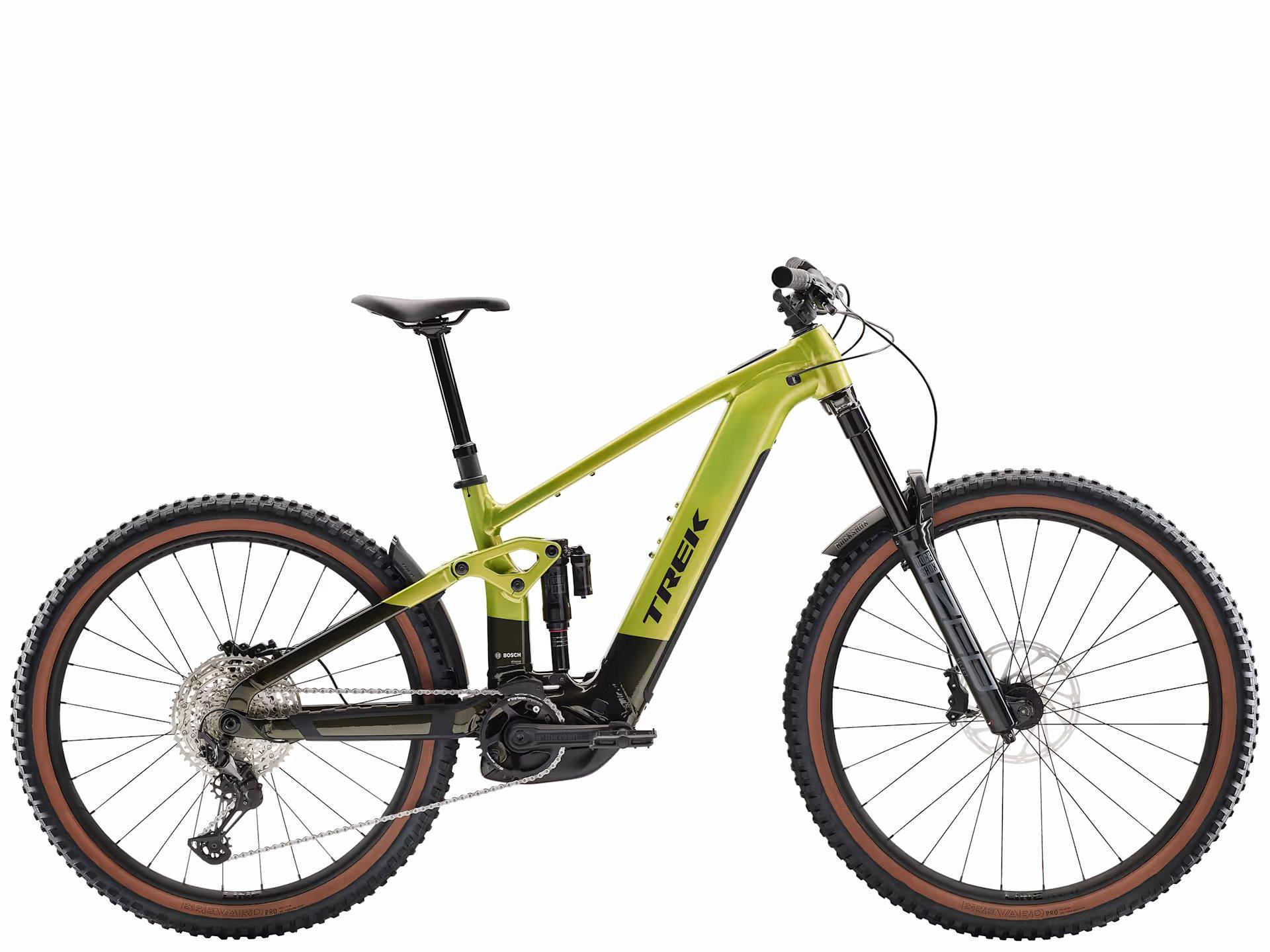

Trek Rail+ 8 Gen 5 2026 Mountain E-Bike - Green
