Description
Coming Soon. Please contact our Customer Service team if you're interested in pre-ordering.

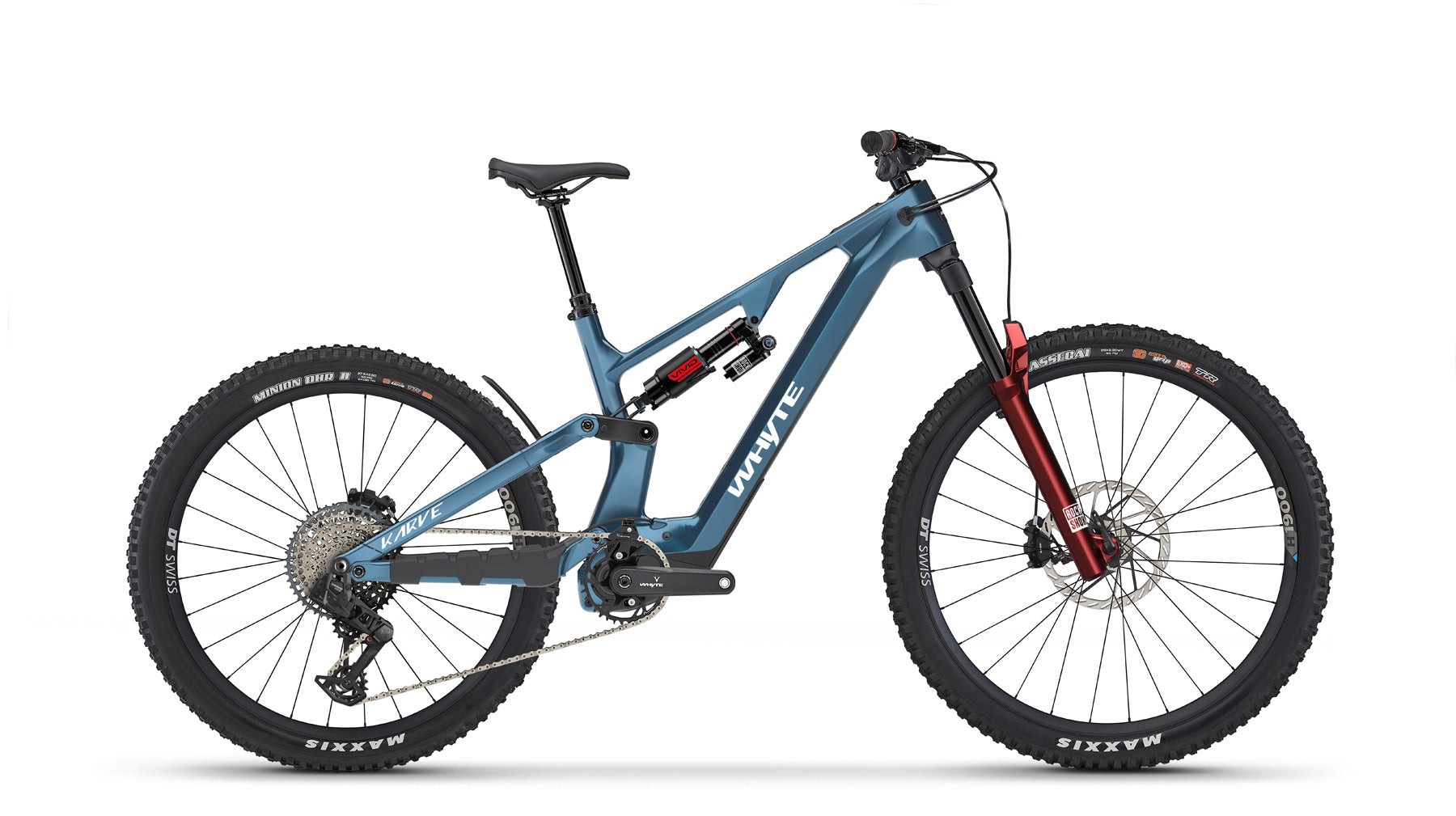

Coming soon, the new Karve Evo RSX MX 2027 Mountain E-Bike from Whyte is powered by Avinox to take every ride to the next level.
Designed to take on the toughest conditions the UK terrain can throw at you, the Karve Evo RSX has a uni-directional carbon fibre front triangle with 6061 T6 aluminium rear triangle that provide strong responsiveness and shock absorption on demanding trails.
The RSX is the flagship model in the Karve Evo range, built for extreme downhill terrain, bike parks, and self-shuttled riding that utilises the motor to climb quickly. Paired with a high-capacity integrated battery and fast-charging capability, the RSX is built to keep you riding longer without interruption.
The mixed-wheel (MX) setup - featuring a 29-inch front wheel for stability and a 27.5-inch rear for agility - strikes the perfect balance between confidence at speed and responsive handling. With 180mm of suspension travel front and rear, the bike is engineered to absorb big hits, maintain traction through technical sections, and stay composed on aggressive descents.
Features:
- Uni-directional carbon fibre front triangle with 6061 T6 aluminium rear triangle frame + proportional sizing for perfect fit across every size + geometry adjustment + full weatherproofing.
- Avinox's very latest M2S full-torque (up to 150Nm), full-power (1300W peak) motor system.
- 800Wh internal battery.
- 29in front + 27/5in rear MX (mixed)/‘mullet’ wheels (ready to be converted to 29er front + rear).
- Adjustable travel full-insertion dropper posts (with frame size size-specific drops).
- Dressed in carefully selected, trail-proven, high-performing components.
- Fitted with RideWrap frame protection kit from the factory (85% coverage)
Specifications
Specifications
| Battery | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. | Drive Unit: Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift | Display: Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips | Charger: Charger 12A (230V) |
| Battery Type | 800Wh |
| Brake Set | Front: SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt HS2 rotors | Rear: SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt HS2 rotors | Brake Levers: SRAM Maven Silver |
| Cassette | SRAM XS 1275, T-Type, 10-52T, 12 speed |
| Chain | SRAM GX T-Type, 12 speed |
| Crank | Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type |
| Electric Assisted Speed Limit | 15.5 MPH / 25 KPH |
| Electric Bike | Yes |
| Fork | RockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard |
| Frame Material | Carbon Fiber |
| Grips | Whyte Enduro lock-on |
| Handlebars | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| Headset | ZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearings |
| Hubs | Front: DT Swiss Hybrid HF1900, 110mm x 15mm Boost, six bolt | Rear: DT Swiss Hybrid HF1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt |
| Motor | Avinox M2S (150Nm / 1300W) |
| Pedals | Fibre reinforced composite platform |
| Rear Shock | RockShox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for Whyte |
| Rims | DT Swiss Hybrid HF1900, 29in front, 27.5in rear |
| Saddle | Whyte Custom |
| Seatpost | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| Shifters | SRAM AXS Pod, right, MMX, 12 speed |
| Stem | Whyte, 35mm extension, 35mm bar bore |
| Suspension Type | Full Suspension |
| Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| Wheels | Spokes: DT Swiss Elemental |
| Wheel Size | 29" / 27.5" |
